Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 10-15 WORK DAYS

Product Description

Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI

Descriptions of Drill Pipe Power Tong Max. Torque 18440 Ft.lbf Pressure Rating 1740 PSI:

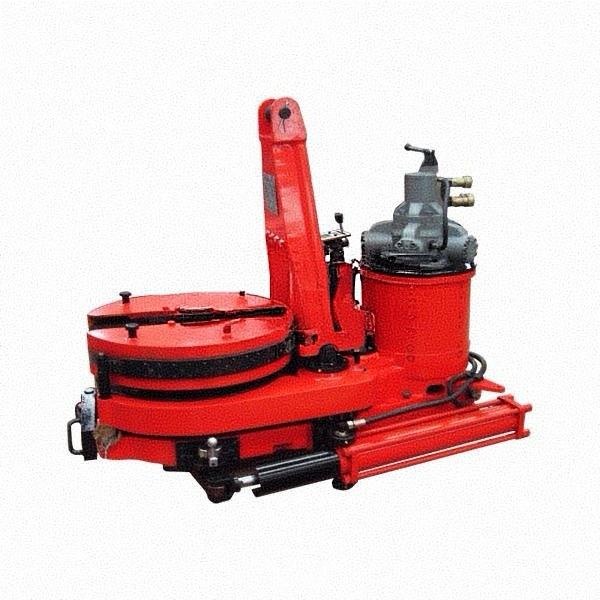

ZQ drill pipe power tong is an ideal well head tool for oil drilling apparatus, widely applied in making up and breaking out in drilling well and repairing well on offshore and land, open head design of the ZQ series allows to take the long is a combination of spinning tong and torque tong instead of cathead manual tong and spinning rope for makin up and breaking out. They are strictly designed and manufactured in according with API 7K.

Specifications:

Model		ZQ127-25	ZQ162-50	ZQ203-100
Size Range	mm	65-127	85-162	127-203
Max. Torque	kN.m	25	50	100
Max. Torque	Ft.lbf	18440	36880	73750
Speed (High Gear)	rpm	65	60	40
Speed (Low Gear)	rpm	10.5	4.1	2.7
Air Pressure	MPa	0.5–0.9
Air Pressure	PSI	72-144
Pressure Rating	MPa	12	14	16.6
Pressure Rating	PSI	1740	2320	2400
Flow Rating	L/min	120	120	114
Flow Rating	gpm	31.7	31.7	30
Shifting Distance	mm	1000	1000	1500
Shifting Distance	in	39.4	39.4	59
Shape Size	mm	1110×735×815	1570×800×1190	1760×1000×1360
Weight	kg	620	1500	2400
