DCL-060 Wooden Package Pp Pvc Lamella Plate Clarifier Gravity Settling High Separation Efficiency

The size of the gravity settler mentioned in the introduction is determined according to two parameters, namely the upflow rate of the liquid and the settling area. Therefore, under the same conditions, the effective area of the clarifier and the flake settler are the same. In the clarifier, the settling area is the surface of the water tank, and in the flake settler, the settling area is the total area of the inclined plate projected on the horizontal surface.

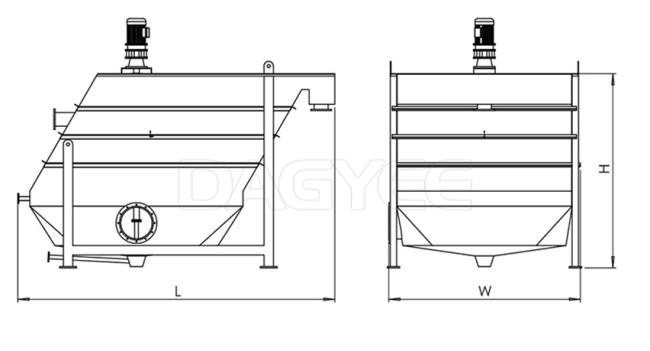

60M3/hr Lamella Clarifier Specifications

The Description Of Lamella Plate Clarifier

Inclined plate sediment water purifier is format by install 60° dip angle inclined tube above the sludge suspended layer, to make the suspended solids or floc alum flower by dosing flocculant accumulate into thin sludge later in inclined tube downside superficial area, slide back to sludge suspended layer rely on gravity, then settling in sludge collecting hopper, discharge into sludge tank by sludge pipe for separate treatment or comprehensive utilization. The supernatant fluid gradually rise to water collecting pipe discharge or reuse.

Range Of Applications

• Gravel and sand industry
• Recycling industry
• Glass / Ceramics / natural stone
• Chemical industry
• Energy industry / cooling water
• Tunneling / construction sites
• Waste / Landfill / street-cleaning
• Heavy metal precipitation
• Municipal water treatment Systems
• Wet scrubber and slaking effluents in the power industry
• Thickening processes in the chemical, mining and mineral industries​

Features Of Lamella Clarifier

• Unit is Completely Assembled
• Low Installation
• Conservative Design 0.2 GPM/Ft2
• Completely Automatic, Gravity in Gravity Out
• Reduced Floor Space
• Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)​

Dagyee Lamella Clarifier Focus On More Details
