ISO9001 Multi Bag Filter Housing
DYG-2S Stainless Steel Multi Bag Cartridge Filter Housings Manufacturers For Wine Oil Water Treatment Unit
Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.
Multi Bag Filter Housings Specification
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Model | Max. Flow Rate (m3 /h) |
Max. Operating Conditions (bar/°C) |
Filter specifications |
Inlet/ Outlet |
Height mm |
Max. bag Outside Diameter |
| DYG-2D-2S | 70 M3/H | 12/150 | Ø180*810 | 2'' | 1600 | Ø420 |
| DYG-3D-2S | 100 M3/H | 12/150 | Ø180*810 | 3'' | 1800 | Ø506 |
| DYG-4D-2S | 130 M3/H | 12/150 | Ø180*810 | 4'' | 1800 | Ø506 |
| DYG-6D-2S | 200 M3/H | 12/150 | Ø180*810 | 4'' | 2100 | Ø650 |
| DYG-8D-2S | 250 M3/H | 12/150 | Ø180*810 | 5'' | 2100 | Ø710 |
| DYG-12D-2S | 400M3/H | 12/150 | Ø180*810 | 6'' | 2100 | Ø910 |
Multi 2 Bag Filter Housings Specification
| Model | DYG-1-1S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø420*1600 |
| Max. Flow Rate (m3 /h) | 70 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 2'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 2 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 3 Bag Filter Housings Specification
| Model | DYG-3D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø506*1800 |
| Max. Flow Rate (m3 /h) | 100 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 3 '' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 3 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 4 Bag Filter Housings Specification
| Model | DYG-4D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø506*1800 |
| Max. Flow Rate (m3 /h) | 130 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 3 '' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 4 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 6 Bag Filter Housings Specification
| Model | DYG-6D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø650*2100 |
| Max. Flow Rate (m3 /h) | 200 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 4'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 6 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 8 Bag Filter Housings Specification
| Model | DYG-8D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø710*2100 |
| Max. Flow Rate (m3 /h) | 250 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 5'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 8 |
| Max. bag Outside Diameter(mm) | Ø180 |
Multi 12 Bag Filter Housings Specification
| Model | DYG-12D-2S |
| Material | SUS304 SUS316 |
| Filtration accuracy | 0.1-200UM |
| Connection Type | Flange /BSP female |
| Surface treatment | Mirror reflection |
| Housing Dimensions (mm) | Ø910*2100 |
| Max. Flow Rate (m3 /h) | 250 |
| Max. Operating Conditions (bar/°C) | 12/150 |
| Inlet/Outlet (flange) | 6'' |
| Length of Filter bag (mm) | 810 |
| No. of Filter bag | 12 |
| Max. bag Outside Diameter(mm) | Ø180 |
DAGYEE Cartridge Housing Applications
- Water Treatment, RO system;
- Pharmaceuticals, API, Biologics;
- Food and Beverage, Wine, Beer, Mineral Water, Distillation Equipment;
- Paints, Inks Plating Solutions;
- Process Chemicals and Electronics Industry ;

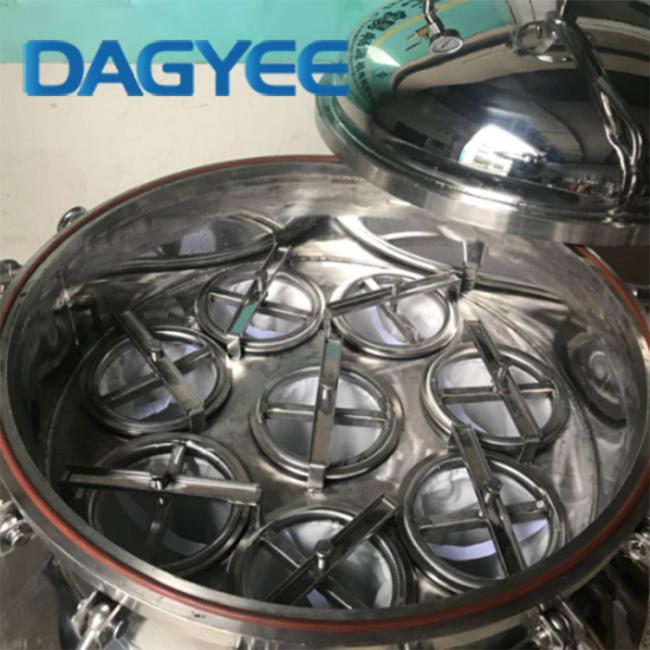

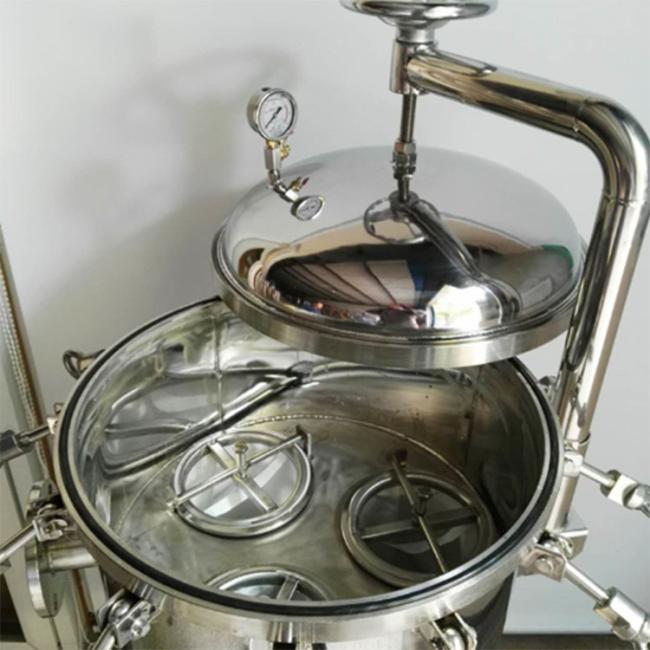

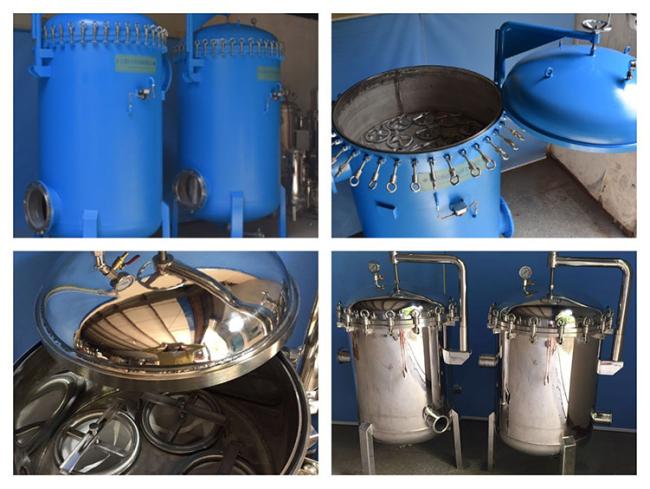

DAGYEE Cartridge Housing Shell Details
