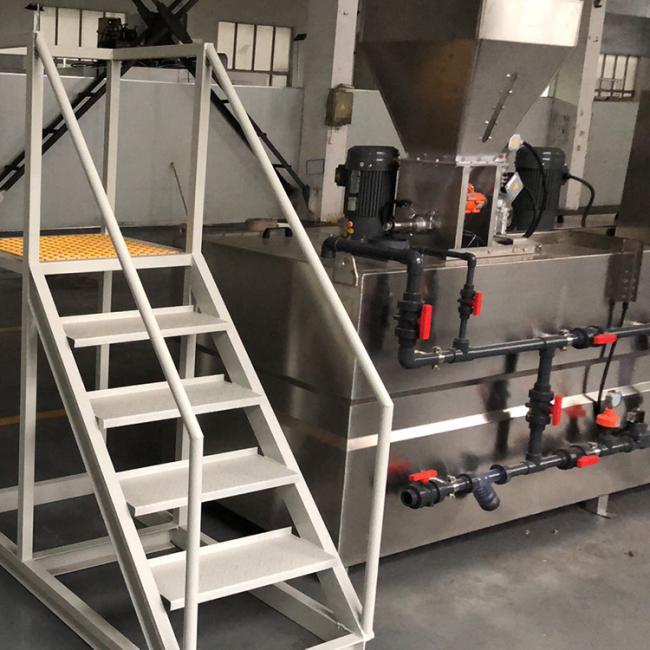

2000L PAM Dissolver Dosing Device With CE Certified
2000L PAM Dissolver Dosing Device
A comple te range of polyme r batching and me t ering sys tems.The polymer preparation unit automatically prepares polymer solutions which areused as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenancethrough to the various stages of wastewatertreatment, as well as oil recovery, colourremoval, paper production and mineral processing.The range also comes with a variety of electrical control panels, mixers,diaphragm pumps and tank sizes to offer an optimum solution for every application.Its design also means that Dagyee offers flexible and compact footprint solutions to fit even confined spaces.
Dissolver Dosing Device
| Model | PT-2000 |
| Capacity(L/h) | 2000 |
| Power(kw) | 2.4 |
| Powder dosage(kg/h) | 2.5-3.5 |
| Water inlet flow(m3/h) | 1.6-8 |
| L(mm) | 2450 |
| B(mm) | 1270 |
| H(mm) | 2000 |
| L1(mm) | 2370 |
| B1(mm) | 1220 |
| Net weight(kg) | 790 |
The Feature Of Dissolver Dosing Device
- Optional equipment
- Automatic powder hopper loading.
- Minimum level probe in the powder hopper.
- Stirrer in the batching tank.
- Vibrator for hopper.
- Prefabricated post-dilution systems.

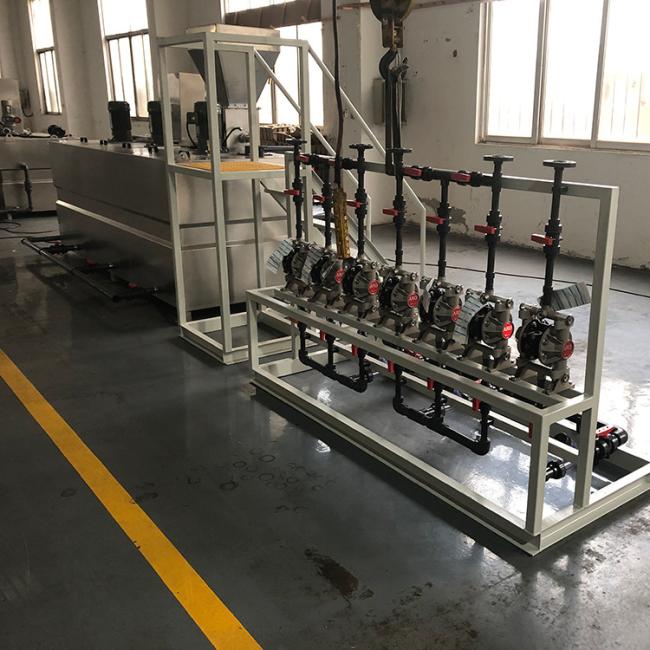

Complete PAM Batching Metering Systems
- It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
- It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
- It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
- Preparation capacity: 1000-10000(L/h)
- Shell material: SS304/PP
- Full automatic operation mode, easy to operate
- Precise and adjustable feeding mode, different concentration can be prepared
- Self-diagnosis function, fault alarm output
