PQ32 34*28.5*28mm DIP Electronic Inductors 1426uH 1574uH
PQ32 DIP Power Inductors Manufacture Customized DW6465A
The inductor have three important parameters:
(I) Inductance
The inductance is decide of the turn, the material of the magnetic core, etc. Usually, the turn is more,the inductance is bigger. The larger the magnetic permeability of the core, the inductance is bigger.
(II) Allowable Tolerance
It refers to the allowable error value between the nominal inductance on the spec with the actual inductance.The allowable tolerance is ± 10% ~ 15%.
(III) Rated current
It refers to the maximum current value that the inductor is allowed to pass during normal operation. If the working current exceeds the rated current, the inductor will change performance parameters due to heat generation, and even burn out due to over current.

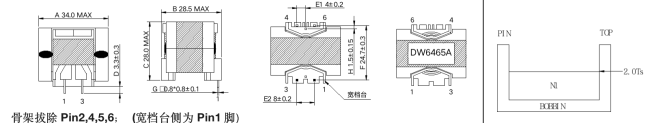

1. Drawing (Unit: mm)
2. Process of Winding
| winding | Barrier Tape | PIN Position | Wire & Description | TS | Winding Method | Wire Enter Groove | Insulation Tape | Tube |
Entering method of axle |
Direction of axle |
|||||
| PIN | TOP | Start | End | Start | End |
Tape type (High temperature dark brown) |
TS | Start | End | ||||||
| N1 | / | / |
2UEW-F, USTC(Ø0.10mm*40P) *1 strand silk-covered wire |
65 |
Tightly wind 6 layers High-temperature tape insulation between layers |
Pin 1 side | Pin3 side |
PF-301 W12.0mm |
2 |
18L×15mm |
18L×15mm |
Pin towards right |
front |
||
3. Electrical Characteristic
| Item | Test Terminal | Test Condition | Standard Requirement | Equipment | |||
| Semi-finished goods | Manufactured goods | QC Exam | |||||
| Inductance Test | 1 | 3 |
50KHz,0.1V |
1440-1560uH |
1426-1574uH |
1500uH±5% |
TH1062 or equal |
| Direct Current Resistance | 1 | 3 |
DC 25℃ |
270m Ω ma |
270m Ω max |
270m Ω max |
TH2511 or equal |
| Turns Test | All windings |
20KHz,1V |
65±0.2TS |
YG-108 or equal |
|||
| Interlayer pressure | 1-3 |
AC-50Hz |
/ |
1800Vac |
1800Vac |
FT6815 or equal |
|
| Withstand Voltage Test | N1 to Core |
AC-50Hz-1mA |
1750V 2 Sec |
2000V 2 Sec |
1750V 2 Sec |
CJ2670 or equal |
|
