26*19*25mm 10KHz To 500KHz RM8 DIP Power Inductor In Electrical Circuit
RM8 DIP Power Inductors Manufacture Customized DW6860

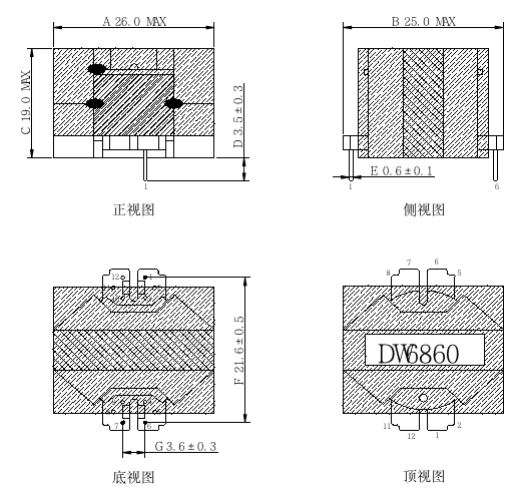

1. Drawing (Unit: mm)
2. Construction
3. Schematic
4.Winding Sequence
| WINDING | TERMINAL (START-FINISH) |
WIRE SIZE | TURNS (TS) |
TAPE ( yellow) |
NOTE |
| N1 | 7 --- 6 | LITZ / 2UEWF ∮0.10mm*40P | 40 | W10.0mm*3TS | Tightly wind 5.5 layers |
5. Electrical Characteristics
| 测试项目 ITEM |
电性能参数要求 ELECTRICAL PARAMETERS REQUIRED |
测试条件 TEST CONDITION |
|
| 电感值 INDUCTANCE |
L(7--6)=105uH±5% | 10KHz ,0.3V (CH-1062 or EQUIVALENT) |
|
| 漏感 LEAKAGE INDUCTANCE |
/ | ||
| 直流电阻 RESISTANCE |
/ | DC,AT25℃ TH-2512 or EQUIVALENT |
|
| 匝比极性测试 TURNS&Polarity |
NP=40(±0.3TS) | 20KHZ,1.0V (TH3252 or EQUIVALENT) |
|
| 耐压测试 HI-POT |
Pin1--Pin7 | AC 1000V / 5mA / 3S | AC 60Hz CH9053 METER or EQU |
| Pin1&Pin7--CORE | AC 1000V / 5mA / 3S | ||
| 绝缘电阻 INSULATION RESISTANCE |
COIL-CORE | DC500V 100Mohm MIN | |
| Note: The test for 20°C-30°C in temperature, humidity in 45°-80° environment. | |||
