RM10 Shielded SMD Power Inductors 95.5uH To 104.5uH
RM10 Shielded SMD Power Inductors Manufacturer Customized DW4884
Features:
▪Integrally molded power inductor using a metallic magnetic material.Magnetic shield type and low noise
▪It achieve large current,low Rdc,and compactness
▪Good performance in high-temperature environments with good DC superimposition characteristics
▪No Halogen,RoHS compliant
Application:
Power supply around the PC,servers,communication devices,automotive electronics,compact power supply modules,others.

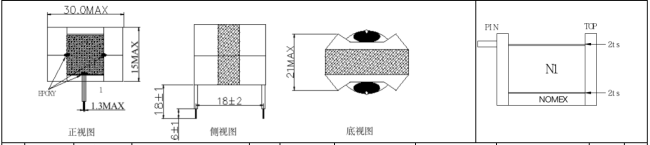

1. Drawing (Unit: mm)
2. Process of winding
| Winding | Margin barrier | Pin position | Wire & description | TS | Method of winding | Groove position | Insulation tape | Tube | Method of entering axle | Direction of axle | |||||
| TOP | PIN top | Start | End | Start | End | Tape type | TS | Start | End | ||||||
| *bobbin less winding, the central column is 1.1TS wrapped in Nome paper,then fix with 2 TS tape | |||||||||||||||
| N1 | (1) | (2) |
2UEW-F,φ0.10mm×35 bars Silk covered wire |
26.5 | Tightly wind 4 layers | / | / | 0.025×8.5mm | 2 | 17L×25mm | 17L×25mm | Pin towards right | front | ||
3. Electrical Characteristics
| Item | Test Terminal | Test Condition | Standard Requirement | Equipment | |||
| Semi-finished goods | Manufactured Goods | QC Exam | |||||
| Inductance Test | 1 | 2 | 10KHz,0.3V | 97uH--103uH | 95.5uH---104.5uH | 100uH±5% | TH1062 or equal |
| Leakage Test | 1 | 2 |
10KHz,0.3V (short connection to other PIN) |
/ | / | / | TH1062 or equal |
| Direct Current Resistance | 1 | 2 | DC 25℃ | 110mΩ max | 110mΩ max | 110mΩ max | TH2511 or equal |
| Turns Test | 1 | 2 | / | 26 (±0.2Ts) | 26 (±0.2Ts) | 26 (±0.2Ts) | YG-108 or equal |
| High-Voltage Test | Pin 1+2 Core | AC-50Hz-5mA | 500±10V,1~2 Sec | 600±10V,1~2 Sec | 500±10V,1~2 Sec | CJ2670 or equal | |
