Safety Pen Tips for Insulin 30G 5mm Compatible with Most Pen Injectors
【Safety Pen Needle Descriptions】
Insulin injection pen needle makes injection safe and simple. The same using steps as normal injection pen needle, smart function to achieve automatic protection without extra operation after using. Safety shield sliding soft and easy during injection bring comfort injection.
【Safety Pen Needle Specifications】
| Type | Safety Pen Needle |
| Material | PE+PP+Stainless Steel |
| Gauge | 30G-32G |
| Length |
4MM-12MM
|
| Sterilization |
Gamma Or Electron Beam Irradiation
|
| OEM |
Available
|
| HS Code |
9018321000
|
| Shelf Life | 5 Years |
| Package | 100 Pcs/Box, 40 Boxes/Ctn |
| Carton Size | 55*35.5*35.8cm |
| G.W. | 15KGS Per Carton |
| Certificates | ISO13485(TUV), MDR CE (TUV), US FDA, US FDA 510K, UK MHRA |
| Intended Use | Match with insulin pen for insulin injection to lower the blood sugar level. |
【Safety Pen Needle Features】
Transparent safety shield design for easy observing the use status and drug droplets;
Easy to trigger the safety function after injection;
No more operation than normal pen needles can achieve the safety function purpose;
Self-made triple sharpened needle and top lubrication technology giving minimum penetration force;
Uniform hub screw thread can match with wide range of insulin pen in the market, same as normal diabetic pen needle.
【Safety Pen Needle Details】

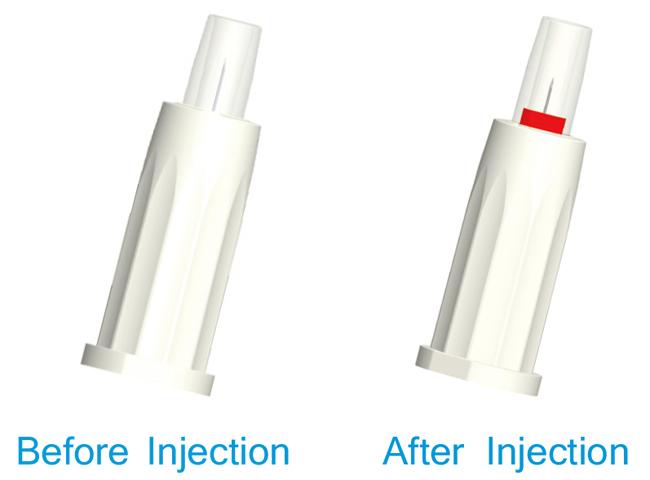

The red indicator shows after injection. It means the insulin needle tip can't be used again.
【Safety Pen Needle Compatibility】
FlexTouch® Novo Nordisk
FlexPen® Novo Nordisk
NovoPen®Echo Novo Nordish
NovoPen® 4 Novo Nordish
NovoPen® 5 Novo Nordisk
Lantus SoloStar®
OptiPen® Pro 1 Sanofi
KwikPen® Humalog
Liprolog® Eli Lilly
Huminsulin® Eli Lilly
HumaPen® Luxura ™ Eli Lilly
HumaPen® Luxura ™ HD Eli Lilly
HumaPen® MEMOIR ™ Eli Lilly
Exenatide Pen Byetta
Autopen® Classic Owen Mumford
Autopen® 24 Owen Mumford
Omnican® Pen 31B.Braun
Ypsopen® Ypsomed
OptiClik® Ypsomed
BerlinPen® Areo Berlin-Chemie
BerlinPen® Areo 2 Berlin Chemie
BerlinPen® 302 Berlin Chemie
Tactipen® Haselmeier
and many others

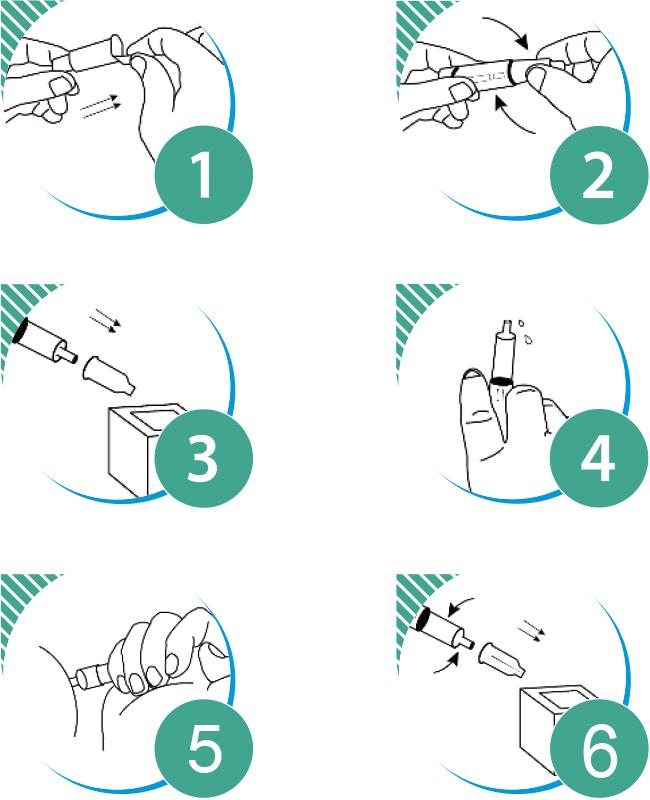

【Safety Pen Needle IFU】
Step 1: Remove the protective seal.
Step 2: Screw the needle onto the pen injector. Keep the needle straight without any damages.
Step 3: Remove the pen needle outer cover and dispose it into an appropriate container.
Step 4: Upward the needle, flick the pen injector to float the bubbles to the needle top, press the injection button until the liquid is discharged from the insulin needle tip.
Step 5: Make an injection per physician's advice. After injection, keep the needle under the skin for at least 6 seconds before pulling out.
Step 6: Discard the used safety insulin pen needle into the appreciate container.

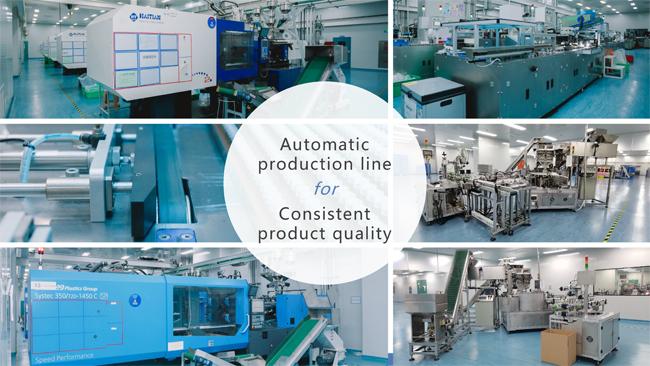

【Safety Pen Needle Production】
We're adopting the most advanced production technology and strict quality inspection to guarantee the stable quality.
- Auto-Manufacturing Line;
- Own Sterilizer: SAL10, EO Gas, BI Test, CI Test, Sterility Best, ISO1135
- Clean Room (Class 100,000) by the installation with HEPA Filter in the last stage of process
- Air Control: Bioburden Test, ISO 11737-1
- Environmental Control (ISO13485:2016, CE 0197, 21CFR 820, MDSAP)
【Safety Pen Needle Storage】
The pen needle for diabetes should be stored in a well-ventilated room and kept away from light and moisture and corrosive gases.
【Safety Pen Needle Warning】
1. The painfree diabetic pen needle 30G 6mm should be used immediately after the seal is removed. Please do NOT use the pen needle if the seal is damaged or broken previously.
2. This diabetic pen needle is sterilized by irradiation and is designed for single use. Re-use may lead to mechanical malfunction and potential microbiological contamination.
3. Please read the user manual carefully before use.
4. The retractable insulin pen needle is only intended for using with insulin injection pen.
5. Keep insulin pen needles out of the reach of children.
6. Do not share your needles with other people which can lead to the transmission of viral diseases. You may give other people a serious infection or get a serious infection from them.
7. Do not insert the pen needle at an angle towards your fingers, this may result in a needle-stick injury.
8. In the event of any serious adverse event, please report to the manufacturer and the competent authority.
