Portable Water Well Borehole Drilling Rig Mud Pump 160L/Min BW160

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: Within 7-12 days

Brand: ShiTan

Product Description

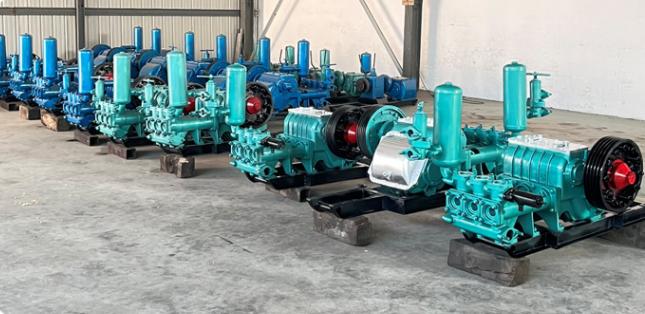

Quality and Efficient Portable BW 160 Mud Pump For Mining And Water Well Borehole Drilling

Product Description

BW 160 mud pump has four kinds of flow rate and pressure and the range of flow and pressure are large. The pump has compact structure, light weight, long working life, easy operation. It’s flexible, reliable and has many common standard parts. It's portable thus easy to move. It can be used in railway,water, metallurgy, construction, geology and other industries with hole depth within 1000m.

Product Specifications

MODEL	BW-160/10
TYPE	Horizontal, Triplex, Single Acting Reciprocating pump
STROKE (mm)	70
LINER DIA. (mm)	70
STROKES (min-1)	200 132 83 55
DISPLACEMENT (L/min)	160 107 67 44
PRESSURE (Mpa)	2.5 4 6.5 10
INPUT POWER (kW)	11
SUCTION PIPE DIA. (mm)	51
DISCHARGE PIPE DIA.(mm)	25
DRILLING HOLE DEPTH	Diamond Core Drilling <1000m
DIMENSION (mm)	1400X850X950
WEIGHT	480KG

Product Features

1. Compact structure, light weight, small size, beautiful appearance, can be driven by hydraulic motor, motor and diesel engine;

2. In the design, we should adopt new concepts, new structures, new materials and new processes;

3. Improve the standardization, serialization and generalization of the horizontal pump body, crankshaft, connecting rod, crosshead, pump head and some other related parts as far as possible, and reduce the types of other parts;

4. The wearing parts have long service life and high reliability.

Product Main Advantages

1. Horizontal Three Cylinder Piston Grouting Pump.

2. Electricity, Diesel Driven or Unpowered Machine Optional.

3. Stable Output, High Pressure and Great Grout Injection Performance.

4. High Quality and Compact Structure, Easy to Install, Operate, Move and Maintain.

BW Series Mud Pump Working Attentions

1. Before starting, the suction pipe, bottom valve and pump body should be filled with water, and the upper end of the pressure gauge buffer should be filled with oil.

2. Before starting, make the piston reciprocate twice, and start with no load when there is no obstruction. After starting, the load shall be increased gradually after the operation is normal.

3. During operation, the sand content of mud should be tested frequently. The sand content of mud shall not exceed 10%.

6. For mud pump with multiple speeds, several speeds shall be operated separately in each shift, and the operation time shall not be less than 30min

4. Do not change speed during operation; When it is necessary to change speed, stop the pump for shifting.

5. During operation, when there is abnormal noise, abnormal water volume and pressure, or obvious temperature rise, the pump shall be stopped for inspection.

6. Under normal conditions, the pump shall be stopped at no load. When the pump is stopped for a long time, all drain holes should be opened, the cylinder head should be loosened, the bottom valve drain rod should be lifted, and all the mud and sand in the pump body and pipeline should be drained.

7. In case of long-term shutdown, clean the mud and oil dirt of each part, drain the lubricating oil in the crankcase, and take anti-rust and anti-corrosion measures.

Mud Pumps FAQ

1.Q: What is the guarantee period of grouting equipment?

A: It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine when delivery.

2.Q: What is your project with grouting equipment?

A: Waterproofing,Floor restoration,Metal door and window frames, Sealing joints, Connecting prefabricated concrete sections, Filling voids and eliminating holes in concrete blocks, Tiling, Levelling sidewalk slabs or Manhole and sewer linings.

3.Q: What is the output of grouting injection pump do you need?

A: Our hot model grouting pump output is from 5-10m3/h, but there are also other series with different output for your choice or custom it as per your request.

4.Q: What is pressure of grouting pump do you need?

A: Our cement grouting pump pressure is 0-10Mpa, but there are also other series with different pressure for your choice or custom it as per your request.

5.Q: What is your local voltage?

A: In China, it is 3phase, 380V,50Hz. We also can change it to your local voltage.

6.Q: What is the after-sales service?

A: We could supply wear parts together with machine when delivery. The operation video and instruction file will send to you once you buy our machine.When using the machine, if you have some questions, our engineer also can guide you through the video to help you to solve the problem.
