200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 7-12 days

Brand: JINZHOU SHITAN

Product Description

200 Meters Tracked Hydraulic Drilling Rig More Convenient Movement

Lightweight, fully hydraulic track-type core exploration equipment designed for 200-meter level geological sampling of medium and shallow holes. This rig balances maneuverability, reliability, and economy, making it widely suitable for engineering exploration, mineral surveys, and hydrogeological investigations.

Technical Specifications

Component	Specification
Drilling Depth	200m
Drilling Diameter	75-300mm
Spindle Speed	115-1010 r/min
Diesel Engine	1115 Diesel Engine
Dimensions	1750×850×1300 mm
Weight	9800kg
Drilling Angle	90°-75°
Spindle Stroke	450mm
Spindle Diameter	Φ59mmx53mmx4350mm Kelly rod
Spindle Pull-Down Max	15KN
Spindle Lifting Capacity Max	25KN
Vertical Maximum Output Torque	1.5KN.m
Max. Lifting Capacity (single rope)	20KN.m
Lifting Rotating Speed	20; 40; 90; 168r/min
Wire Rope Diameter	9.3mm

Key Features

Specialized for geological core drilling and exploration
Capable of small grouting, blast hole, and water well drilling
Hydraulic feeding mechanism improves efficiency and reduces labor intensity
Upper spherical jaw holding mechanism enables rod replacement without shutdown
Hole-bottom pressure gauge for precise operation control
Centralized controls for convenient operation
Compact structure with high mobility for various terrains

Performance Advantages

Strong terrain compatibility: Operates effectively in low-bearing ground conditions including swamps, paddy fields, wetlands, and deserts without sinking issues
Urban operation friendly: Free paving steel plates for urban/park operations with climbing capability up to 25-30° slopes and flexible in-place turning
Environmentally conscious: Significantly lower noise and vibration than steel tracks with minimal surface damage and reduced environmental compliance costs
Rapid deployment: Fast transition between sites, ideal for census projects with small hole spacing and frequent relocation requirements
Versatile coring capabilities: Supports diamond rope coring, impact rotation, and directional drilling with pressure/depressurization drilling suitable for soft-hard interlayers and fractured zones

Considerations

Heavy load capacity is optimized for medium and shallow holes (typically under 800m), not suitable for ultra-deep hole heavy-duty applications
Rubber tracks may be susceptible to damage from sharp rock/gravel pavement, requiring additional protection measures
Extreme high/low temperature environments necessitate weather-resistant rubber materials with slightly higher maintenance costs compared to steel tracks

Typical Applications

Urban engineering survey and geological sampling along roads, bridges, and subways
Hydrogeological and geothermal surveys in farmland and protected areas
General survey of medium and shallow pore metal/non-metal minerals (sand and gravel mines, shallow gold mines)
Emergency sampling in geological hazard areas including landslides and mudslides
Construction of encrypted holes and slope monitoring holes in small mining operations

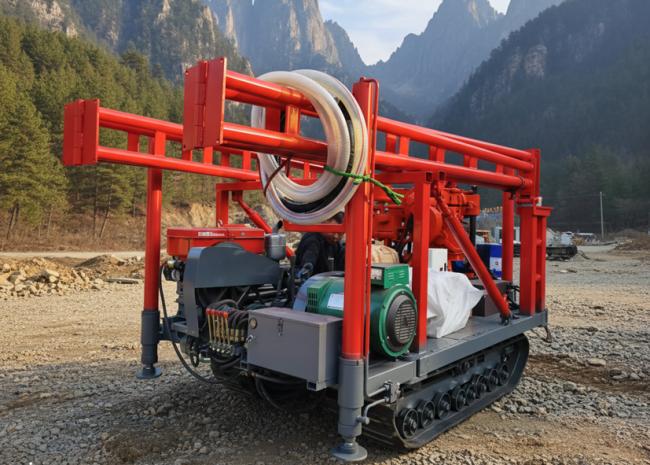

Product Images
