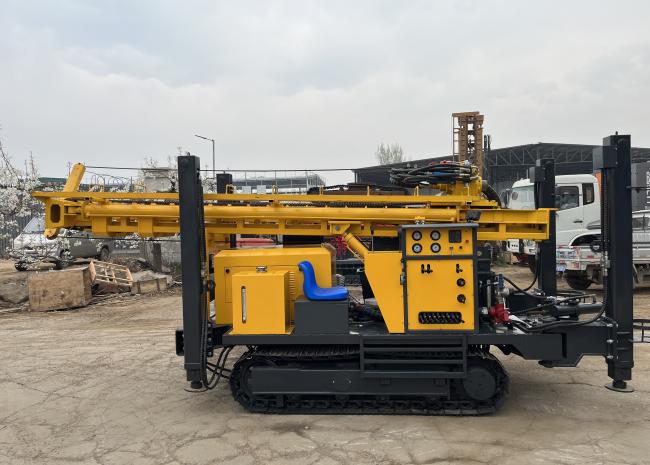

Efficient And Stable ST300 Water Well Drilling Rig With Low Failure Rate
The Pneumatic 300 Drilling Machine is a mid to deep hole pneumatic drilling machine powered by compressed air, with a maximum drilling depth of about 300 meters. It is mostly tracked/vehicle mounted and focuses on efficient drilling of rock formations.
| Drilling Depth | 300m |
| Drilling Hole Diameter | 105-305mm |
| Working wind pressure | 1.25-3.5Mpa |
| Gas consumption | 16-55m³/min |
| Drill pipe length | 6m |
| Drill pipe diameter | 89mm |
| Axial pressure | 4T |
| Lifting force | 22T |
| Lifting speed | 20m/min |
| Fast forward speed | 40m-min |
| Maximum turning torque | 8900 /NM |
| Maximum rotation speed | 85/170r/min |
| Lifting force of small auxiliary winch | 1.2T |

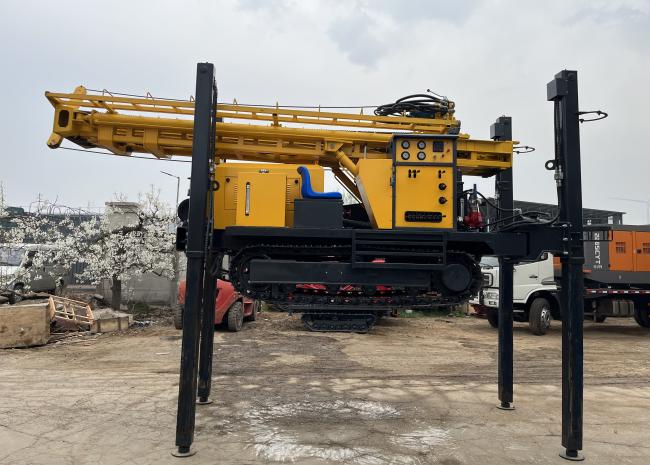

| High leg travel | 1.35m |
| Footage efficiency | 10-35m/h |
| Walking speed | 2.5km/h |
| Climbing degree | 30 |
| Weight | 8T |
| Overall dimension | 4.8m*1.9m*2.35m |
| Adaptive conditions | Loose layer and bedrock |
| Engine | Yuchai 78KW |
| Drilling method | top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling |
- ✅ Civil/industrial water wells, irrigation wells
- ✅ Geothermal well, geothermal heat pump hole
- ✅ Deep hole mining, slope anchoring, geological exploration
- ✅ Mountainous areas, hills, no electricity/explosion-proof conditions
- ✅ Fast drilling speed in hard rock (30m/h level), strong deep hole capability
- ✅ Track/vehicle chassis, fast off-road/transition
- ✅ No electricity operation, explosion-proof, adaptable to harsh environments
- ⚠️ Need to be equipped with a high-power air compressor with high noise/dust levels
