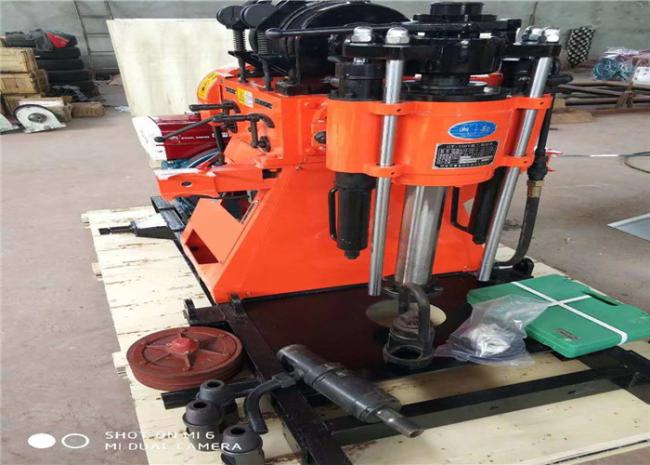

ISO Horizontal 150m Water Well Drilling Rig Machine
Geological Exploration Water Well Drilling Rig , Portable Core Drill Rig
1 Drilling rig introduction
Usage of Water Well Core Drilling Rig
GT-200 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
2 Technical specification
| ST-200 Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
(4-speed) 115 230 505 1010r/m |
|
Hole diameter
|
Max.220m | Spindle stroke | 450kmm |
| Drill rod diameter | 57mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.2Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 2000r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine | ZS1115 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 16.2KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1730*860*1360mm | ||
Advantages of Water Well Core Drilling Rig as below
| ★ Hydraulic feeding mechanism can improve drilling efficient,reducing labor work |
| ★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable |
| ★ Equipped with hole bottom pressure indicator, you can know the situation inside the hole |
| ★ Handle centered ,convenient operation |
| ★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas. |
| ★ Adopting large drive pipe,double guide rod, increase the steady |
| Diesel engine or Electrical motor. |
We can provide:
1. Test Report & MTC
2. Ready stock for normal sizes
3. Customized sizes welcomed
4. One stop service

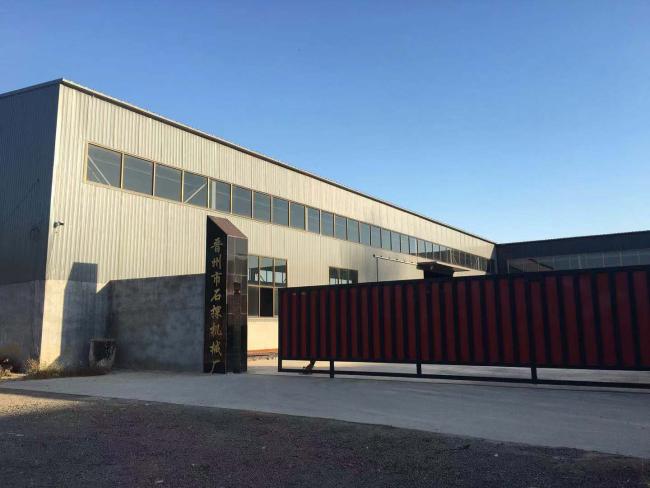

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products： Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
