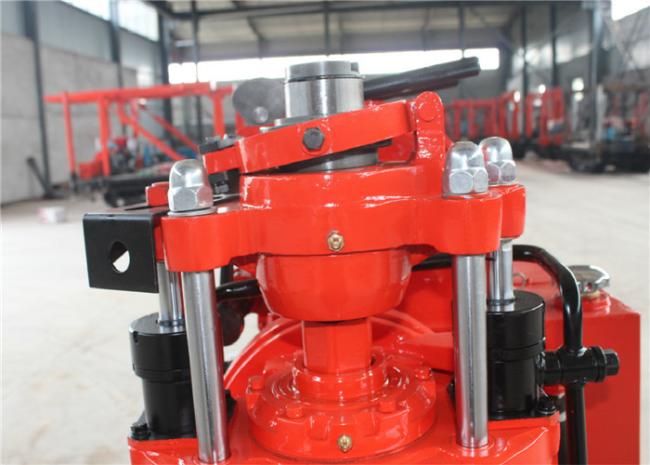

200 Meter Deep Water Well Drilling Rig XY-200 Easy Operate For Transportation / Bridge
200 meter China depth horizontal Drilling Rig Water Well is used for:
Water well drilling, engineering geographical prospecting of railway, hydro-power, transportation, bridge, dam foundation and buildings, as well as rock core geological and physical survey drilling
| Drill rig | Hoist | |||
| Drilling Depth | 500/300/230/100 feet | Lifting capacity (single rope) | 15KN | |
| Drill rod diameter | 1.65 inch | Lifting rotating speed | 18/36/84/168 r/min | |
| Pilot Hole diameter | 5.9 inch | Drum circle linear speed (2 layers) | 32.8/65.3/144.3/288.3ft/min | |
| Final Hole diameter | 2.95 / 1.81 inch | Drum Diameter | 5.51 inch | |
| Drill angle | 90-75 0 | Wire rope diameter | 0.37 inch | |
| Moving stroke | 13.78 inch | Wire rope length | 114.8 feet | |
| Weight | 500kg | Brake diameter | 9.92 inch | |
| Dimension(L x W x H) | 4.70 x 2.30 x 4.18 feet | Brake belt width | 1.97 inch | |
| Swivel head | Engine (Diesel or Electric motor) | |||
| Spindle speed (4-shift) | 71/142/310/620 r/min | Diesel engine | S1115 | |
| Spindle stroke | 17.71 inch | Rated power | 16.2KW | |
| Forward speed | 13.2 ft /min | Rated speed | 2200 r/min | |
| Reverse speed | 9.85 ft/min | Electric motor | Y160M-4 | |
| Spindle torque | 15 KN | Rated power | 11KW | |
| Spindle lifting capacity | 25 KN | Rated speed | 1460 r/min | |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
