Portable 300mm 200 meter Borehole Drilling Machine
Price:
Negotiation
MOQ:
1 set
Delivery Time:
7-12 days
Brand:
JINZHOU SHITAN
Product Description

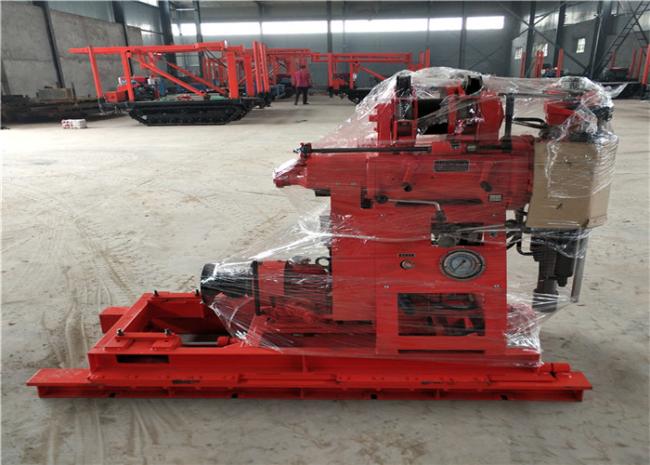

XY-200 water well drilling machine/200m depth well drilling rig
1, XY-200 water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,
reduce manual labor workers.
2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,
easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4 The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
| Drilling depth | 200m | |
| Maximum open hole caliber | 300mm | |
| End hole caliber | 75mm | |
| Drill rod caliber | 60mm | |
| Drilling angle | 90°~75° | |
| Drill weight (No include power) | 525kg | |
| Unity machine dimensions | 1433×697×1273m | |
| Spindle | ||
| spindle speed | 71 142 310 620r/min | |
| Spindle stroke | 450mm | |
| Winch | ||
| Max.single line hoisting capacity | 15KN | |
| Single line lifting speed | 0.41,0.82,1.64m/s | |
| steel wire rope caliber | 13m(35m) | |
| Mud pump | ||
| Type | Horizontal single urn twin-action | |
| Displacement | 170/150L/min(diesel or electromotor) | |
| Diesle engine | ZS1115 16.2kw 2200r/min | |
| Electric motor | Y160M—4 11kw 1440r/min | |
