China Multifunctional XY-1 100m Hard Rock Drilling Equipment for sale

Multifunctional XY-1 100m Hard Rock Drilling Equipment

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: Within 7-12 days

Brand: ShiTan

Product Description

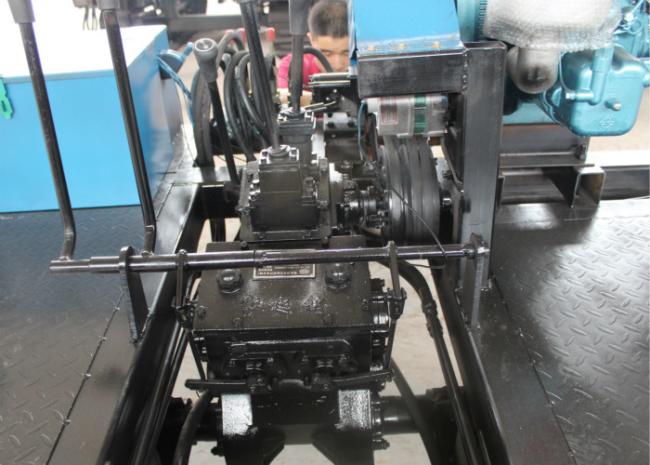

Multifunctional Geological Drilling Rig Machine , XY-1 Hard Rock Drilling Equipment

Description

Geological Drilling Rig Machine is a new-design light-weight, high efficiency mainly applied to drill drilling water Wells, agricultural irrigation Wells and other well, especially for the mountain area and rock stratum for water supply projects. The rig adopt new type hydraulic pressure technology, and match a complete set of hydraulic motor with high torque and large diameter cylinder turn of the hydraulic oil cylinder propulsion.

Technical and parameter

XY-1 Rig Technical Specifications
Main technical parameters		Pump
Drilling depth(m)	100m	Type	Gear pumps
Hole diameter	110mm	Model	YBC-12/80
The final hole diameter	75mm	Rated pressure	8Mpa

Rod diameter	42-50mm	Flow	8ml/r
Borehole inclination	90°— 75°	Rated speed	1500r/min

Rig Dimensions	1640mm×1030mm×1440mm
(L×B×H)
Rig weight(Except the power machine	500kg	Motor and diesel
Gyrator		type	ZSⅡ00
vertical speed	142,285,570r/min	Rated Power	11KW
vertical stroke	450mm	Rated speed	2200r/min
vertical load up the maximum speed	3m/min	Electric motor
vertical load down the maximum speed	4m/min	type	Y160M-4
The maximum vertical force feed	15KN	Rated Power	11KW
The maximum vertical lifting force	25KN	Rated speed	1460r/min
		Pump
Winches		Type	Horizontal single-cylinder double-acting
The maximum lifting capacity ( a single rope speed )	10KN	The maximum displacement	99(77)L/min
Reel speed	55,110,220r/min	The maximum allowable pressure	1.2Mpa
Roll peripheral speed	0.42,0..84,1.68m/s	Working Pressure	0.7Mpa
Reel diameter	145mm	The number of strokes	120(96)min
Rope diameter	9.3mm	Liner diameter	80mm
Rope capacity	27m	Piston stroke	100mm
Brake diameter	230mm
Gate width	50mm
