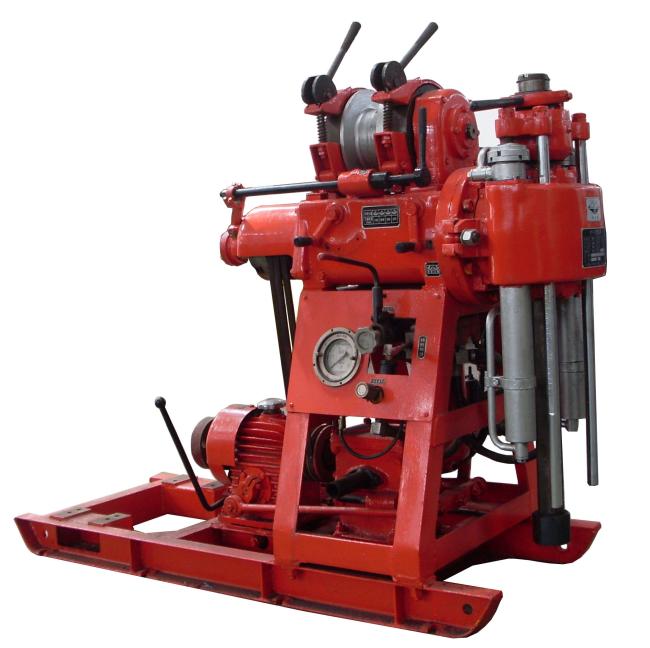

Horizontal 100M 1050rpm Portable Water Well Drilling Rig
Portable Geotechnical Soil Testing And Core Drilling Rig Machine
Product description
Construction Drilling Machine For Portable Water Well Drilling Rig.
1. It is portable type drilling machine, easy operation, two or three people can do the drilling themselves.
2. Mud pump is mounted on this type drilling rig,
2. This type water well drilling machine is widely used in Soil sample, geological investigation,
3. Multiple revolving speed grades for selection, fitting different drilling tasks
| DRILLING CAPACITY | Depth 120m / 42 |
| SWIVEL HEAD | |
| Type | Twin cylinder, Oil-hydraulic feed system, Spindle type |
| Angle Range | 360° |
| Stroke of Spindle | 400mm |
| Revolving Speed of Spindle | 140 305 480 1050 rpm |
| Max. Spindle Torque | 500N*m |
| Max. Thrust Capacity | 20 kN |
| Max. Balance Capacity | 30 kN |
| AVAILABLE RODS | 42mm, 50mm, AW, BW |
| HOIST DRUM | |
| Type | Planetary grear, hand brake type |
| Hoisting Capacity | 10kN at single pull line |
| Rope Speed | 0.46 0.87 1.48 3.23 m/s at single pull time |
| Drum Capacity | *Φ9.3mm × 18m |
| OIL - HYDRAULIC | |
| Type | Constant delivery, gear type pump |
| Delivery Capacity | 31L/min 2200r.p.m |
| Max. Pressure | 25MPa |
| POWER | Diesel engine ZS1100, 12.1KW at 2200 r.p.m |
| Or electronic Motor, 11KW at 1460 r.p.m | |
| MUD PUMP | Horizontal Single Cylinder Piston Pump |
| 100L/min, 1.5Mpa | |
| NET WEIGHT | 600kgs |
| DIMENSION(L×W×H) | 1800 × 835 ×1150mm |
2. A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.
3. Handle concentration, easy operation.
4. It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.
5. It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains
