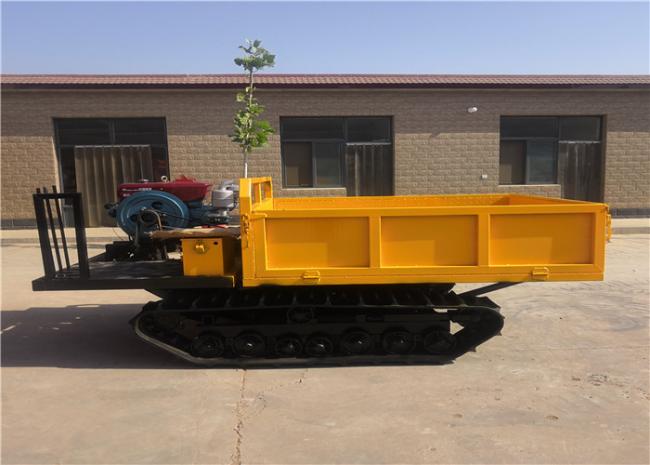

Yellow Color Long Life 4 Tons Walk Type Small Tracked Transport Vehicle
Yellow Color Long Life 4 Tons Walk Type Small Tracked Transport Vehicle
Track Transporter Parameters
| Type : 4 T | Bucket size: 2350*1800*500 mm |
| Size: 3600*1850*1600mm | Crawler material: Rubber material |
| Track ground length: 1700 mm | Loading &unloading method: Hydraulic dump |
| Motor size: 490 | Gear type: drawbar |
| Gear: +3 forward gear+1 reverse gear | The height from the bottom of the bucket to the ground: 700 mm |
| Steering method: Clutch brake steering | Start method: Electric start |
| Speed : 0-18 Kilometer per hour | Crawler size: 4000* 900*540 mm |
Description of 4 ton mini tracked carrier dumper
- The machine is simple to operate, controlled, and uniquely designed to make operation not only fast, cost-effective, but also excellent in climbing ability.
- Good performance for demanding jobs.
- It features a rubber track and a solid rocking roll to ensure that the operator operates smoothly and effortlessly during transport and reduces damage to the ground.
- In some restricted areas, such as unpaved areas, snow, orchards, farmland, vineyards, mountains, or narrow roads, due to their compact structure and strong load capacity, they can play a satisfactory role.
- The wheeled transporter will be trapped when the road is wet and muddy, but this will not happen with track transport. It maintains good performance even in unpaved wetlands or construction sites.
- Equipped with hydraulic take-off and landing, self-unloading, reducing labor intensity and improving transportation efficiency
Features:
1. Wide application range, simple structure, stable transmission, easy operation and easy automatic control.
2. Suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.
3. Single-cylinder power system with low fuel consumption.
4. The traction is large, the climbing performance is good, and the transportation capacity is strong.
5.The turning radius is small, flexible, especially suitable for narrow sites, reducing the cost of building roads.
6. Equipped with electric start, handle centralized, easy to operate.
7. It is equipped with hydraulic lifting and lowering, self-unloading, reducing labor intensity and improving transportation efficiency.
4tons Walk Type Small Tracked Transport Vehicle Yellow Color Mini Crawler Dumper
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:
Pneumatic Drilling Rig / Air Drilling Rig(ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
