170r/Min Family 180m Portable Water Well Drilling Rig Machine
Family Using Portable Water Well Drilling Rigs Machine For Sale

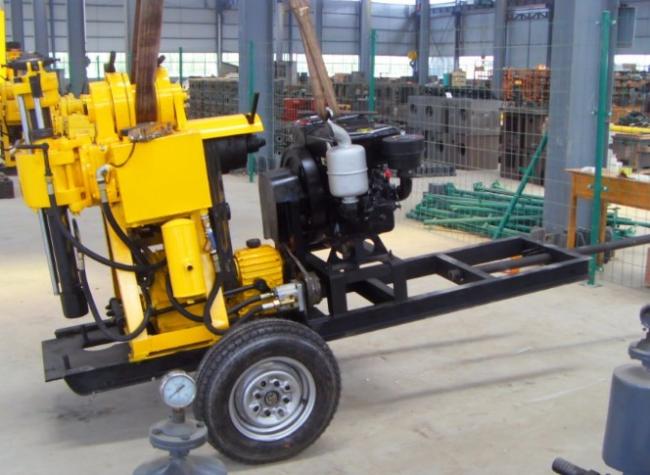

Water Well Drilling Rig Machine Introduction
GK-180 series Water Well Drilling Rig Machine is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata, it drills by choosing diamond, composite films and alloy
Water Well Drilling Rig Machine parameters
| GK-180 Drilling rig | |
| Drilling depth | 180m |
| Drill rod caliber | 42mm |
| Hole diameter | 75mm |
| Drilling angle | 90°-75° |
| Dimensions | 2120*875*1480mm |
| Weight(without power unit) | 750kg |
| Swivel head | |
| Spindle speed | 71,182,310,790r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max. | 15KN |
| Spindle lifting capacity max. | 25KN |
| Spindle max.torque | 1.5KN.m |
| Brake diameter | 278mm |
| Brake belt width | 50mm |
| Hoist | |
| Max. lifting capacity | 20KN |
| Hoisting drum revolution | 20,39,85,170r/min |
| Drum diameter | 140mm |
| Wire rope diameter | 9.3mm |
| Wire rope capability | 40m |
| Oil pump | |
| Model | YBC-20/125 |
| Rated presure | 12.5Mpa |
| displacement | 20ml/r |
| rated speed | 800-2500r/min |
| Water pump | |
| Displacement max. | 95(77)L/min |
| Working pressure max. | 1.2Mpa |
| Rated pressure | 0.7Mpa |
| Liner diameter | 80mm |
| Piston stroke | 100mm |
| Power(diesel engine or motor) | |
| Rated power | 16.2KW |
| Rated speed | 2200r/min |

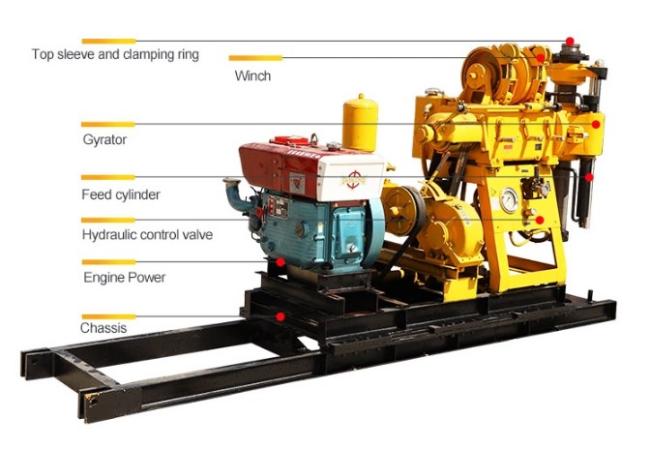

GK180 Water Well Drilling Rig Machine main features
* 2,It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
* 3, It has hole bottom pressure gauge to be easy to master the situation in the hole.
* 4, It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.
Drilling Rig Manufacturer DERY Service
2. Your problems can get feedback in 8 hours and solved in 24 hours.
3. The machine can be customized as per your requirements.
