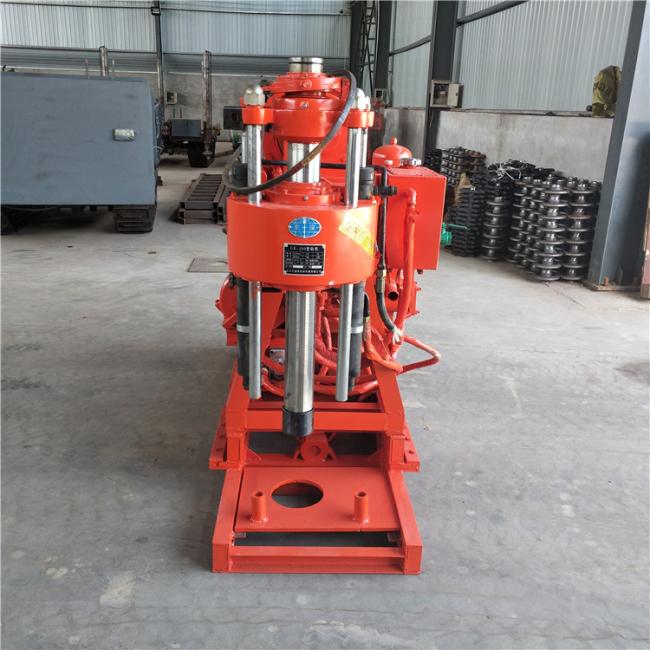

15kw Trailer Type 200m Portable Well Drilling Rig
Trailer Type Water Well Drilling Machine/200m Portable Water Well Drilling Rig
Portable Water Well Drilling Rig troduce
Portable Water Well Drilling Rig parameters
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |
Portable Water Well Drilling Rig Application
(1) The rig has oil-pressure actuating system to improve drilling efficiency and reduces the workers’ physical labor.
(2) Uses ball joint instead of chunk to back the lever conveniently and safely without stopping machines.
(3) It has a manometer to show the pressure in the hole.
(4) Operated conveniently as the handles are centralized.

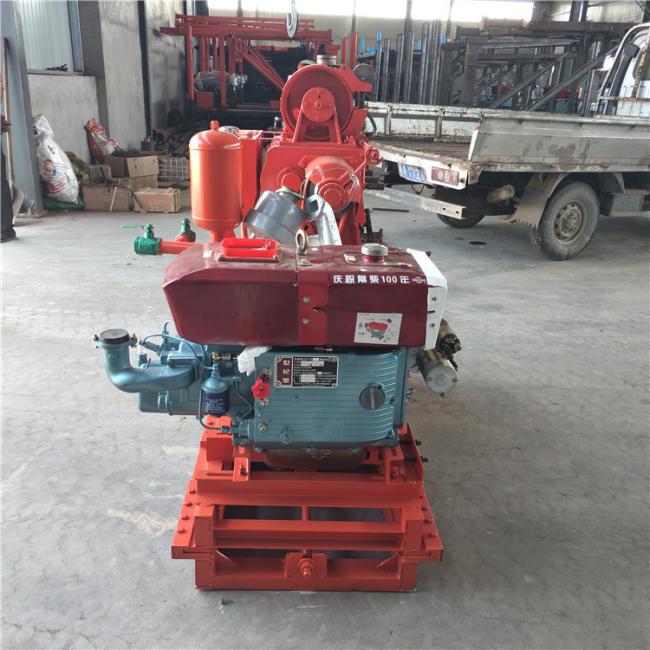

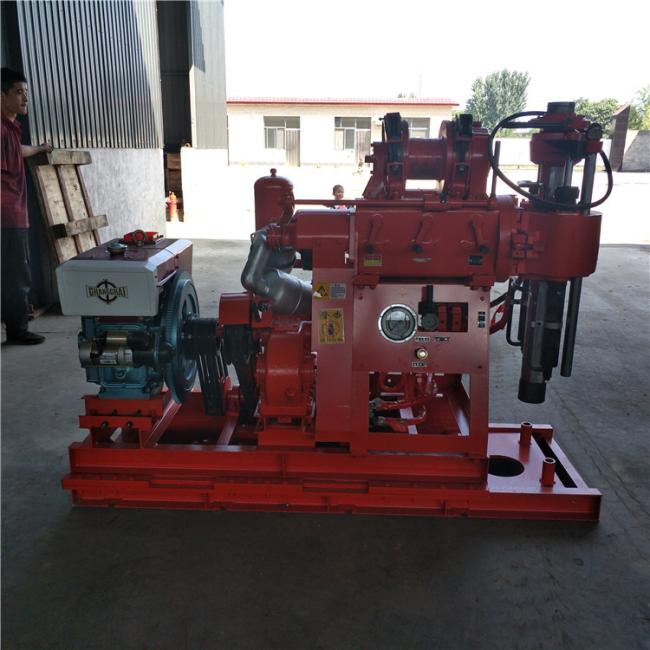

(5) It has compact structure, as rigs, pumps and diesel engines are on one pedestal so that save the space.
(6) Suitable to work on the plain and mountainous areas for it is moved easily with lightweight and simple to disassemble.
Portable Water Well Drilling Rig Main Features
1) It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2) It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.
3) It has hole bottom pressure gauge to be easy to master the situation in the hole.
4) It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move. It can be operated in plains and mountain areas.
