Water St 300 Meters OEM Hydraulic Borewell Drilling Machine
ST 300 Meters High Working Efficiency Pneumatic Borewell Machine
1. Overview of ST 300 Meters High Working Efficiency Pneumatic Borewell Machine

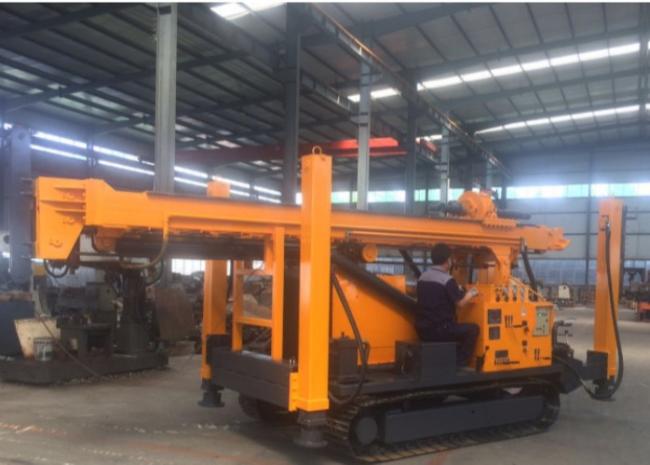

ST 300 Pneumatic Borewell Machine is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells,agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.air compressor mounted water well drilling rig machine small rotary drill rig
2. ST 300 Meters High Working Efficiency Pneumatic Borewell Machine Parameter:
| ST300 trailer mounted water well drilling rig | |
| The weight | 8T |
| Drilling diameter | 105-300mm |
| Drilling depth | 300m |
| One-time advance length | 4m |
| Walking speed | 2.5km/h |
| Climbing angles | Max.30° |
| Equipped capacitor | 65-70KW |
| Using air pressure | 1.7-3.0Mpa |
| Air consumption | 17-30m³/min |
| Drill pipe diameter | φ50mmΦ76 mm φ89mm |
| Drill pipe length | 1.5m 2.0m 3.0m |
| Rig lifting force | 12T |
| Swing speed | 45-70rpm |
| Swing torque | 3500-5900N.m |
| Dimension |
4m×1.9m×2.3m |
3. Advantages Of ST 300 Meters High Working Efficiency Pneumatic Borewell Machine
Large Hole Diameter/Deep Drilling/High Penetration Rate, especially under pure rock condition/Flexible Movement/Wide Application Area
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
