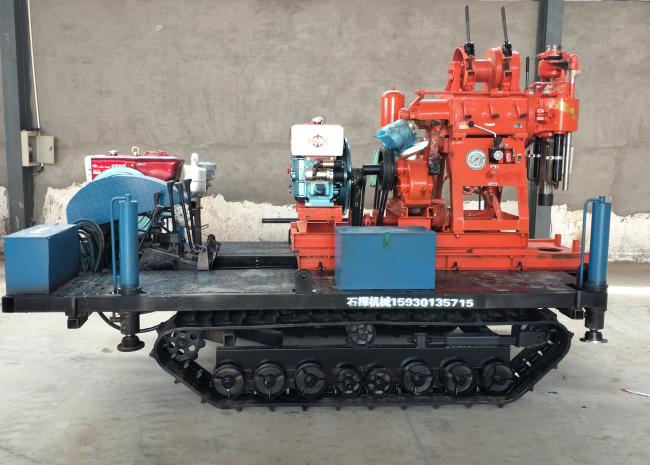

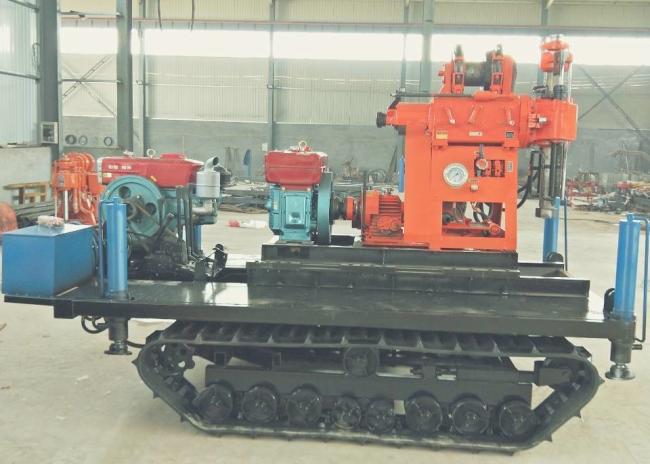

200 Meters Depth Portable Gk200 Iso9001 Truck Mounted Drilling Rig
200meters Dpth Portable GK200 Crawler Core Drilling Rig Mobile Truck Mounted Drilling Rig For Sale
Hydraulic Borewell Machineintroduce
crawler hydraulic core drilling rig is a multi-purpose spindle well drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. Huaxia Master welldrilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
Hydraulic Borewell Machine parameters
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |
Hydraulic Borewell Machine characteristic
GK-200 mobile drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
Feature
1.Hydraulic control drill mast,save time and worker labor.
2.Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.
3.Rubber track is with lighter weight,and does not hurt urban road.
4.Electric-start diesel engine reduces the operator’s labor intensity.
5.Optional installation of hydraulic twist tube machine,improve work efficiency and reduce labor costs.
On-Sale Service
Once we confirm which type to buy, we would adivce some extra configuration, such as trailer, electric starter for engine, more spare parts, more drilling bits. All these will add extra cost, however, it is a must. Normally, the marked price is only for basic configuration, not full included. So don't be attracted by those marked low price.
Provide adivce for shipping issue if you have no experience. Sometimes, shipping is a problem if your city is too far aways from the sea port. In this way, You had better ask some customs agent to make all the importing process clealy, then continue the purchase.
