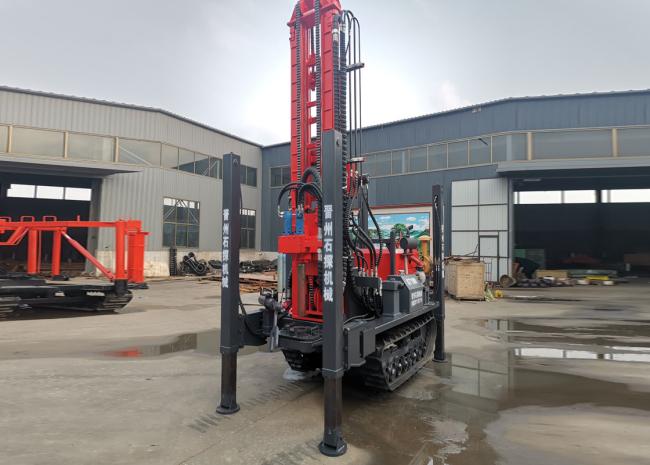

Large Horsepower 180m Rubber Crawler Portable Water Well Drilling Rig Equipment
ST 180 Rubber Crawler Drilling Equipment,Portable Water Well Drilling Rig
Product Description
ST 180 water well drilling rig is a type of light weight, high efficient, multiple functional drilling hole equipment. Which is equipped with advanced structure, easy to handle,high efficient, durable using etc , widely used for drilling well, farming irrigation well,geothermal air conditionhole and other usage well hole, especially suitable for water intaking in moutainnous area and rock layer.
Product Specifications
| ST 180 Portable Drilling Machine | |
| Drilling depth | 180m |
| Drill rod caliber | 42mm |
| Hole diameter | 75mm |
| Drilling angle | 90°-75° |
| Dimensions | 2120*875*1480mm |
| Weight(without power unit) | 750kg |
| Swivel head | |
| Spindle speed | 71,182,310,790r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max. | 15KN |
| Spindle lifting capacity max. | 25KN |
| Spindle max.torque | 1.5KN.m |
| Brake diameter | 278mm |
| Brake belt width | 50mm |
| Hoist | |
| Max. lifting capacity | 20KN |
| Hoisting drum revolution | 20,39,85,170r/min |
| Drum diameter | 140mm |
| Wire rope diameter | 9.3mm |
| Wire rope capability | 40m |
| Oil pump | |
| Model | YBC-20/125 |
| Rated presure | 12.5Mpa |
| displacement | 20ml/r |
| rated speed | 800-2500r/min |
| Water pump | |
| Displacement max. | 95(77)L/min |
| Working pressure max. | 1.2Mpa |
| Rated pressure | 0.7Mpa |
| Liner diameter | 80mm |
| Piston stroke | 100mm |
| Power(diesel engine or motor) | |
| Rated power | 16.2KW |
| Rated speed | 2200r/min |
| Electric motor | Y160M-4 |
| Rated power | 11Kw |
| Rated speed | 1460r/min |
ST 180 Portable Water Well Drilling Rig Features
1.With hydraulic automatic feeding device, elevated drilling efficiency.
2.Large torque and drilling diameter.
3.With a spherical jaw holding mechanism and the rod replacement with out breakdown, high efficiency.
4.Compact structure, small volume, light weight, high detacability, easy transportation and suitable for operations in plains or mountain areas.
ST 180 Portable Water Well Drilling Rig Product Applications
Our machines can be applied to various countries in the world, suitable for various scenarios, various geological scenarios including deserts, swamps, grasslands, mountains, orchards, etc.especially suitable for water intaking in moutainnous area and rock layer. The drill adopts newest hydraulic technology, mating with big torque hydraulic motor rotation and large bore hydraulic oil cylinder driven, lower the labor, cut down assist time, improve efficiency of construction and project quality.
