Gy-200 300 Meters Depth Portable Water Drilling Rig For Investigation
GY-200 Drilling Portable Water Well Drilling Rig
Product Introduction
It is adopted with hydraulic pressure feeding structure, it can proceed attacking and gyrating drilling, and is used for engineering geological exploration in road,railway, bridge foundation,dam site,well,prospecting or industrial and civil architecture. It can also used in anchor rod engineering.
Technical Parameter:
|
GY 200 Drilling Depth |
50-300m | |
| GY 200 Max Open Hole Caliber | 300mm | |
| Motor power | 20 (kw) | |
| Borehole diameter | 75-300 (mm) | |
| End Hole Caliber | 75mm | |
| Drilling Rod Diameter | 60mm | |
| Drilling Angle | 90°~75° | |
| Drill Rig Moving Stroke | 300mm | |
| Power | Diesel engine 22HP | |
| Spindle Speed | 64 128 287 557 r/min | |
| Spindle Stroke | 450mm | |
| Max.Single Line Lifting Capacity | 2400kg | |
| Max.Single Line Lifting Speed | 0.41 0.82 1.64m/s | |
| Wirerope Caliber | 13mm | |

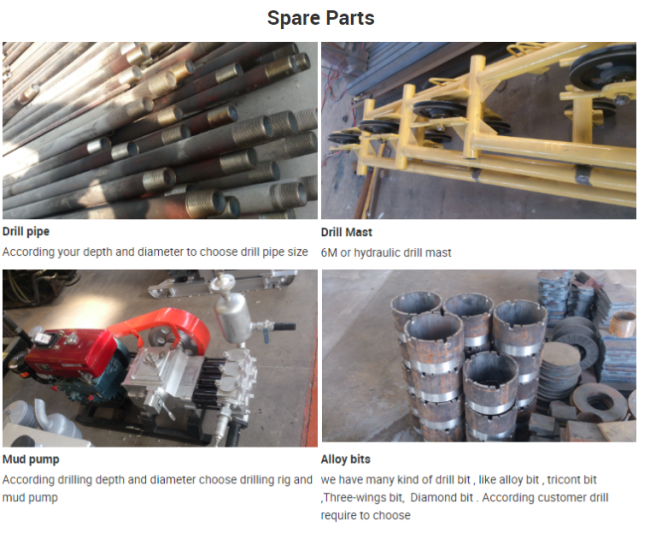

| Mud Pump | Diesel 170L/min | |
| Work Pressure | 1.5Mpa | |
| Water inlet pipe diameter | 40mm | |
| Water outlet pipe diameter | 30mm | |
Advantages:
Applications
The GY-200 rig is widely used for:
Geological Exploration – Core sampling for mineral/oil/gas surveys.
Water Well Drilling – Potable water, irrigation, or industrial wells.
Geotechnical Engineering – Soil testing, foundation surveys, and construction projects.
Environmental Drilling – Groundwater monitoring and pollution studies.
Blast Hole Drilling – Small-scale mining or quarry operations.
