Oem Air Compressor Pneumatic Borewell Machine St 180 Meters High Speed

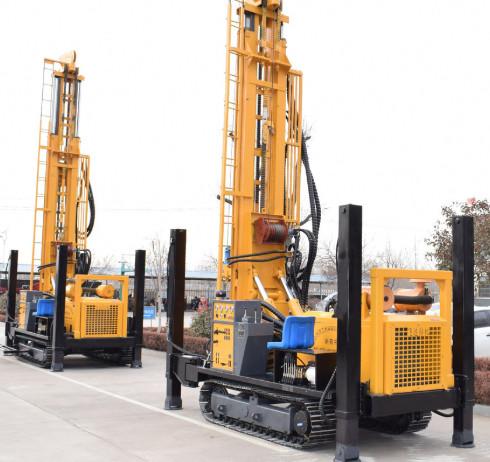

ST 180 Pneumatic Borewell Machine Introduction
ST 180 Pneumatic Borewell Machine Techical Data
|
Model
|
ST180
|
|
Drilling hole diameter
|
140-254mm
|
|
Drilling depth
|
180m
|
|
One-time advance length
|
3.3m
|
|
Walking speed
|
2.5km/h
|
| Climbing angles (Max.) |
30
|
|
Equipped capacitor
|
55kw
|
|
Using air pressure
|
1.7-2.5mpa
|
|
Air consumption
|
17-31m³/min
|
|
Drill pipe length
|
1.5m, 2.0m, 3.0m
|
|
Drill pipe diameter
|
76mm, 89mm
|
|
Rig lifting force
|
12t
|
|
Swing speed
|
45-65rpm
|
|
Swing torque
|
3200-4600(N.m)
|
|
Dimension
|
3800*1500*2200mm
|
|
Weight
|
4500kg
|
ST 180 Pneumatic Borewell Machine Features
1. It has an automatic oil pressure feeding mechanism to improve the drilling efficiency and reduce the physical labor of workers.
2. The ball clamp clamping mechanism is used to replace the chuck, which can reverse the rod without stopping, and the operation is convenient.
3. It is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.
4. The handle is centralized and easy to operate.
5. The structure is compact. The drilling rig, water pump and diesel engine are installed on one base, occupying a small area of the airport.
6 light weight, strong decomposability, easy to move, suitable for working in plain or mountainous areas
ST 180 Pneumatic Borewell Machine FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional drilling rig manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.
Q: If the tool joint the buckle, the screw is not how to do?
A: You can tap and screw, this tool joint is not easy to take over tripping in use.
Q: How about the delivery terms?
A: 1.Payment: T/T,30% deposit in advance and rest before delivery.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products： Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
