Pvc Coated 6ft Height Garden Metal Mesh Fencing Double Circle
PVC Coated 6ft Height Double Circle Fence Welded Wire Garden Fence
Double circle welded wire garden fence Introduction

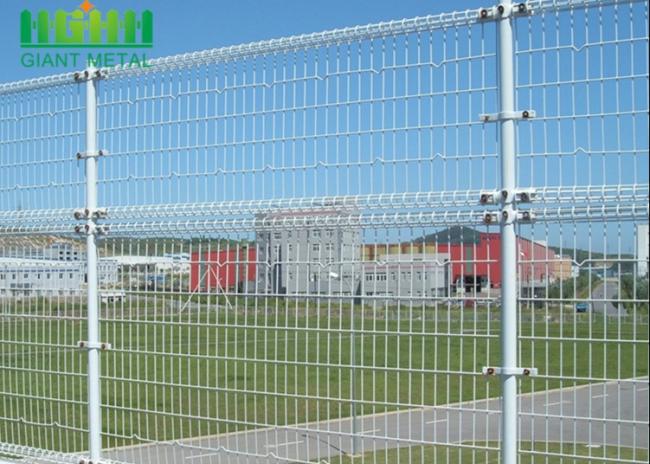

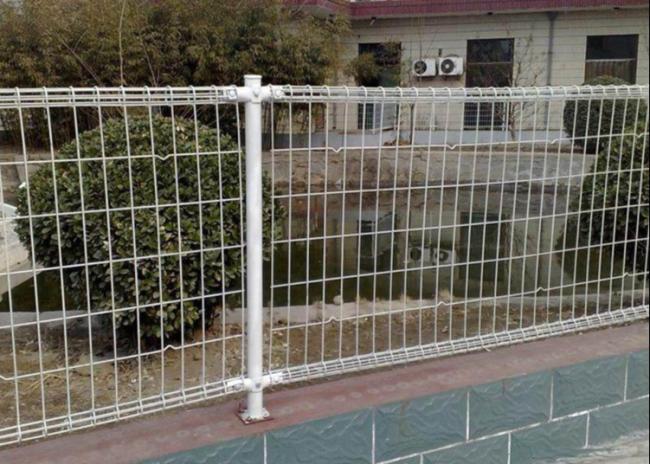

Double circle fence is is a welded mesh panel with a rolled top and bottom edge for giving good rigidity.
double circle fence also called welded wire garden fence .It incorporates user friendly top and bottom "circle" edges to
give enhanced safety and rigidity to the fence.Recommended for use in parks,schools,playgrounds
and sports stadiums,utilities etc.
Specifications of panels
| Line wire x Cross wire | Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm | 50X100mm 50X200mm 55X200mm 75X150mm 100X300mm | 2m 2.2m 2.4m 2.5m 2.8m | 830mm | 2 | Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 | 1.Hot-dipped galvanized after black wire welded 3.PE coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 |
Details of the post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post | 40x40mm 50x50mm 60x60mm | 1.5mm 1.8mm 2mm 2.5mm | 830mm | 850mm | 1200mm | 1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
Round post
| Φ48mm Φ60mm Φ75mm | 1530mm | 1550mm | 2000mm | ||
| 1830mm | / | 2400mm | ||||
| 2030mm | / | 2500mm |
