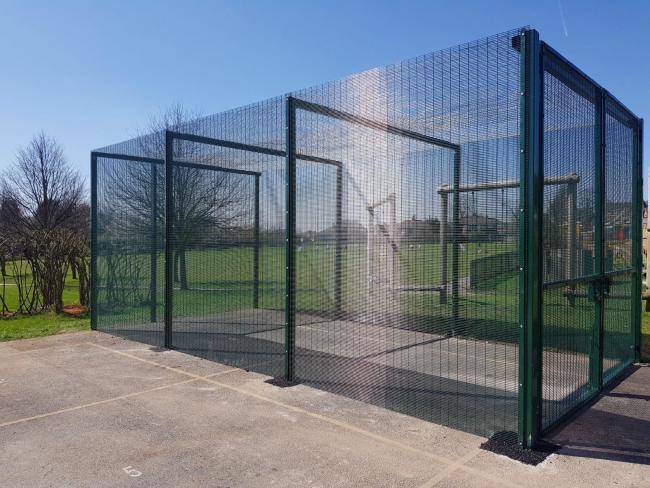

Heavy Gauge Small Hole Anti Climb Fence 3mm Welded Wire Mesh 358
Heavy Gauge Small Hole Welded Wire Mesh Fence Anti Climb Security Fence 358 Fence
Production Flow:
Material - Straighten & cut short - Welding - Making Curves - Parkerising & Powder coating - Packaging - Container Loading
Packaging for 358 Security Fence And Accessories:
Fence packaging
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
Post & Accessories packaging
Post:
<1>The caps have been installed on the top of post, which reduce your labor cost and installing time
<2> Each post are packed by a long plastic bag avoiding damaged by friction
<3>All posts are packed by metal pallet for loading and unloading
Accessories:
Clips and screws are packed by sets, plastic film + carton box.
Carton Box Dimensions: 300*300*400m
Specification:
| Panel Description | |
| Mesh size | 3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection |
| Wire diameter | 8 gauge(4mm) horizontal wire and vertical wire |
| Welded strength | Range 540-690N/m2 |
|
Surface treatment |
hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span |
| Installation | Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts |
| Post Description | |
| Material | high grade steel for maximum strength and rigidity |
| Post section | 60×60mm,80×60mm, 80×80mm or 120×60mm |
| Post plate thickness | 2.5mm or 3.0mm |
| inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ) | |
| Colors | Green RAL 6005, or Black RAL 9005 |
| Post cap | 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap |
| Metal clips and clamps are hot dip galvanized then powder coating in green or black color. | |
