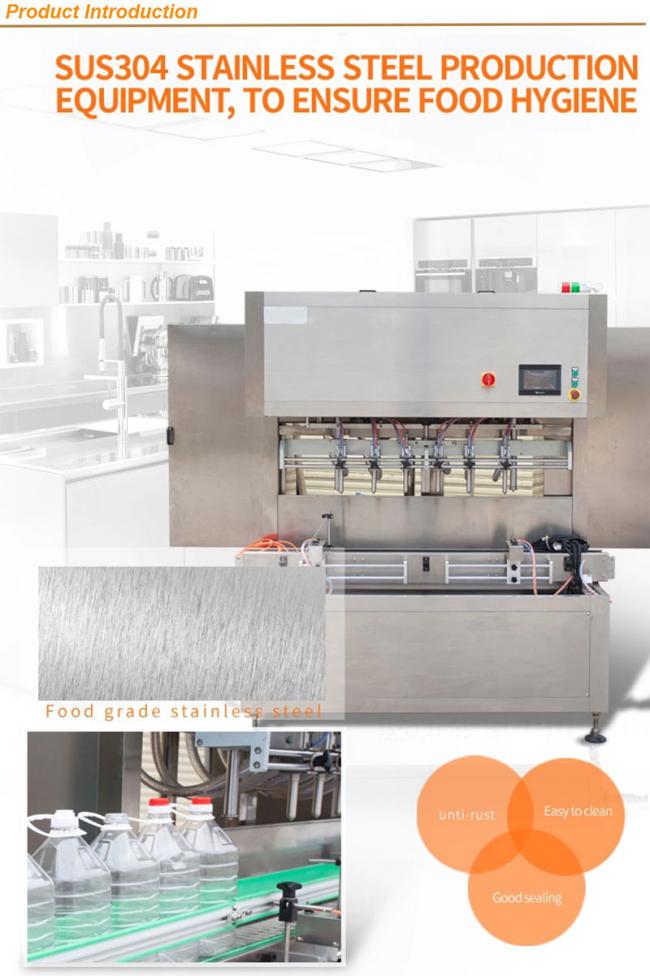

CE Linear Type Piston Food Sauce Cooking Oil Packaging Machine
Full Automatic Linear Type Piston Food Sauce Beverage Lubricant Engine Edible Oil Filling Capping Machine Price
Full Automatic Oil Filling Machine.
Micro-computer Filling Machine is suitable for oil, and liquid with high concentration. It uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation.
The machine is equipped with electric scale weight feedback system which makes the volume adjust easier.
Filling Parts
This machine is equipped with weight feedback system. When changing the bottle size or filling volume, only press one key in the touch screen can be adjusted. Electric scale can transfer the data into the system and fine-tune have to be adjusted in the touch screen by man
Capping part
Equiped with aluminum foil induction sealing machine or several heads capping machine
Features:
1. The cylinder drives the diving of the filling nozzle and matched with the variable filling speed which can reduce foaming when filling which can avoid polluting the bottles.
2. The latest designed bottle-chuck structure is adopted, convenient adjustment, and reliable structure.
3. Optimized Bottle-in and bottle-out control modes: Normal and fast. The fast mode has no delay in bottle-in and out which improves the capacity.
Technical Parameters
|
Model
|
BST-5L-1
|
|
Capacity
|
1000-1500BPH
|
|
Bottle volume
|
500ml-5L
|
|
Bottle height
|
120mm-330mm
|
|
Filling head
|
8 heads
|
|
Filling precision
|
≤0.5% or ≤0.1%
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Voltage
|
220V/380V customized
|
|
Power
|
4.2KW
|
|
Weight
|
1500KG
|
| S/N | Name | Brand | Country |
| 1 | Main motor | ABB | Switzerland |
| 2 | Inverter | MITSUBISHI | Japan |
| 3 | PLC | OMRON | Japan |
| 4 | Touch screen | MITSUBISHI | Japan |
| 5 | Contactor | SCHNEIDER | France |
| 6 | Thermo- relay | SCHNEIDER | France |
| 7 | Air-break switch | SCHNEIDER | France |
| 8 | Proximity switch | TURCK | USA |
| 9 | Photoelectric switch | BANNER | USA |
| 10 | Air circuit system | SMC | Japan |
| 11 | Water pump | Southern | Japan |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1:Do you have any reference project?
Before order service
We will according to your requirement make details quotation for you.
We can send you some our machine running video similar to your product.
If you come to china,we can pick you up from airport or station near our city.
After order service
We will start to make machine,and take some picture by 10 days of our production process .
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
After-sales service
We will testing machine ,and take some video and picture to you if u not come to china inspect machine.
After testing machine we will packing machine ,and delievery container on time.
We can send our engineer to you country help you install and testing machine.we can training you technical staff free until they can running machine independent.
Our company will give you all machine with 2 years guaranteen.In 2 years you can get all spare parts free from us.we can send you by express.
