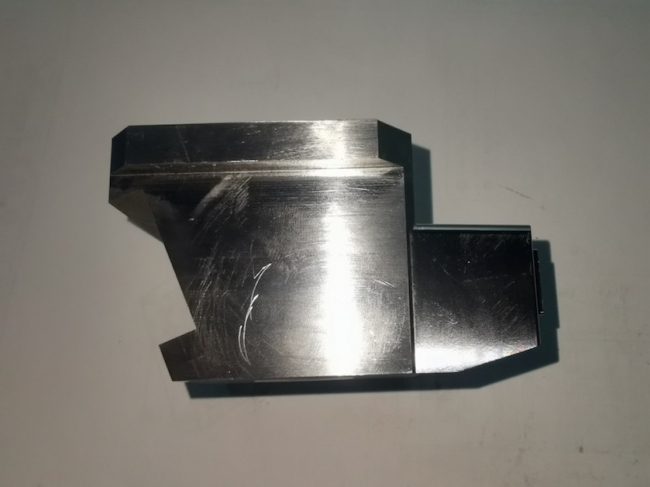

Mould position

Generally refers to the positioning mechanism of the mold, that is, any mechanism that can obtain lateral core pulling or lateral parting and reset action to pull out the product's undercut, depression and other positions.

Positioning action principle and design essentialsedit



It uses the mold opening action of the molding to make the diagonal brace tip and the slider move relative to each other, so that the slider moves along the mold opening direction and the horizontal direction to make it free from the undercut. as the picture shows:
In the picture:
β = α +2 °～3 ° (to prevent interference when clamping the mold and reduce friction when opening the mold)
α ≦ 25 ° (α is the inclination angle of the diagonal brace pin)
L=1.5D (L is the mating length)
S=T+2 ～ 3mm (S is the horizontal movement distance of the slider; T is the finished product undercut)
S=(L1xsina- δ )/cos α (δ is the gap between the brace tip and the sliding block, generally 0.5MM;
L1 is the vertical distance of the brace tip in the slider)

product Used:

Automotive Connector Mold
Precision Connector Mold
Injection Products
Precision Powder Metallurgy Mold
Powder Injection
Die-Casting Mold

Tolerance

Accuracy of grinding: 0.001 mm;
Accuracy of EDM: 0.002 mm;
Accuracy of Wire-cutting: 0.002mm;
Accuracy of CNC: 0.002mm
In short, the requirment of tolerance as customer's demand.



Competitive Advantage:

1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,

Canon and Sony.

2. We have successfully gained the quality certificate of ISO 9001 and IGS.

3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO

and DAIDO.

4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the precision

of the mould.

5. Strict quality control；

6. Good After-sale service；

7. On time delivery
