Asphalt Concrete Pavements 3.95m 80kN Glass Fiber Geogrid
EGA 80-80 KN Asphalt Concrete Pavements High Strength Tensile Fiber Glass Geogrid

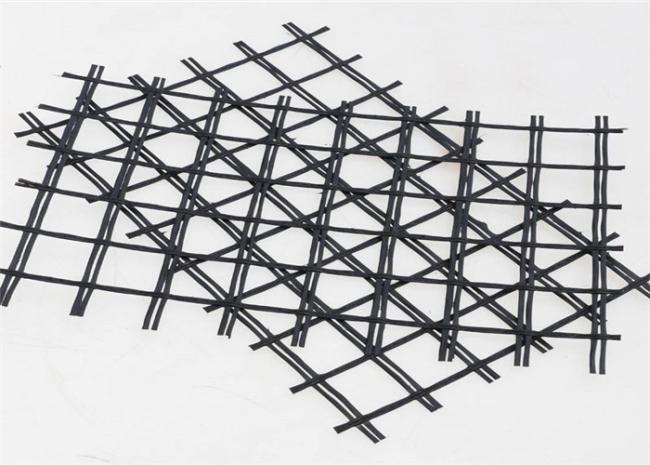

Glass Fiber Geogrid Introduction
Fiberglass geogrid is a kind of new geosynthetics for the reinforcement of road surface and roadbed.This product is made of fiberglass filament by woving machine imported abroad.After coated,it has features of alkali-resistance.This geogrid is mainly used in new road,soft road surface to enlarge the loading capacity and road maintain to prevent the road crackle.
Glass Fiber Geogrid Specification
|
specification
performance |
EGA -25-25 |
EGA -30-30 |
EGA -40-40 |
EGA -50-50 |
EGA -80-80 |
EGA -100-100 |
EGA -50-50-Z Self-adhesive |
|
|
Tensile Strength (KN/m) |
warp | 25 | 30 | 40 | 50 | 80 | 100 | 50 |
| weft | 25 | 30 | 40 | 50 | 80 | 100 | 50 | |
| Elongaton% | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
| Mesh Size (mm) 25.4X25.4 12.7X12.7 | ||||||||
| Width(m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |

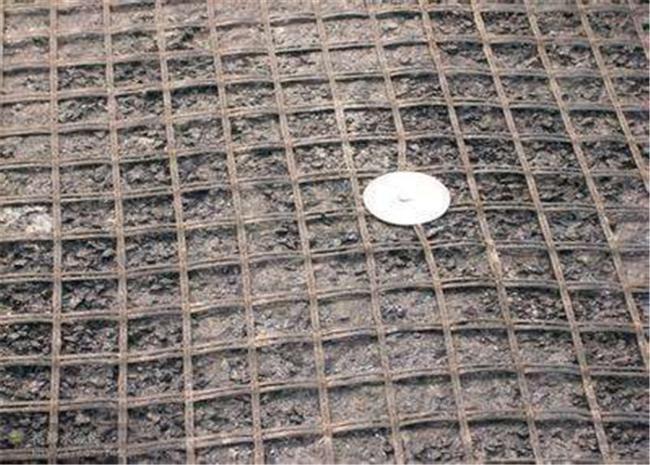

Glass Fiber Geogrid Application
1. The old asphalt concrete pavement, reinforced asphalt surface enhancement, disease prevention and control.
2. Cement Concrete Pavement composite pavement reconstruction, inhibit the contraction caused by the reflection plate cracks.
3 .road extension project, combining old and new prevention department and uneven subsidence caused cracks.
4 .radical reinforcement of soft soil treatment, water is conducive to the consolidation of soft soil analysis, effectively inhibit the settlement, uniform stress distribution, and enhance the overall strength of the roadbed.
