Erosion Control Short Fiber 270gsm Non Woven Geotextile
Stabilization Erosion Control Filtration Short Fiber 270gsm Polyester Non Woven Geotextile Fabric
Non woven Geotextile Fabric Description
Material: Polyester(PET)
Weight / Mass: 100gsm ~ 800gsm
Width: 1m ~ 6m
Length: 50m or 100m/roll
Thickness: 0.9mm ~ 5.0mm
Temperature range: -60℃ ~ +60℃
Color: Black , white , grey, green
PET short fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Non woven Geotextile Fabric Specification
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
Non woven Geotextile Fabric Features
1.Good antimicrobial properties. No damage to microorganisms and insects.
2.Easy to use. Convenient for transportation,laying and construction due to its light and soft material.
3.The mesh cannot be plugged easily – for the strain and moving quality of the network that formed by the antitype fiber.
4.High soaking quality—at the pressure of soil, it also can keep good soaking quality.
Non woven Geotextile Fabric Application

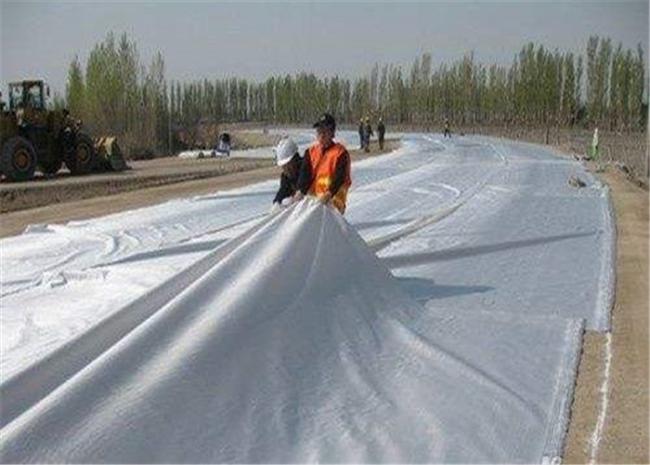

The nonwoven fabric can be used in almost any stabilization,separation or cushioning application,and they are most commonly used in areas that also require filtration.The non woven design of the material provides a higherrate of flow through,making it easier for water to pass through the material.Some commen uses of the material includes the following:
1.Coastal defence applications
2.Landscaping projects to maintain soil and protect land surfaces and structures from weeds and root growth
3.Water conservancy project and hydropower project
4.Reinforcing materials for railways,highways, and airport running road foundations and etc
