6400 Series Deep Groove Ball Bearings OPEN N NR ZZ Heavy Load
Deep Groove Ball Bearings 6400 Series OPEN N NR ZZ 2RS P6 P5 ID 10-150 mm Heavy Load Long Life
Features
Deep groove ball bearing is simple in structure, and mainly bears radial load and a small amount of axial load. It is featured by small friction coefficient, high limit speed, low noise, simple assembly, and multiple sealing structures and variants, which can realize maintenance-free function, low cost, so it is widely used in various applications.
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway. The bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings.
Deep groove ball bearings have various types in structure, besides open type bearings, shields or seals at both sides can also be provided.
Ball bearing is the most commonly used rolling bearing.Its structure is simple, it consists of inner and outer rings with deep symmetrical ball race, separator and complement of balls, and it can be easy to operate. But when the radial play is increasing, it has the performance of angular contact bearing assembly.
Product Specification
| Bearing No. | Structure | Boundary Dimensions(mm) | Basic Load Rating(kN) | Weight(kg) | ||||
| d | D | B | rs min | Cr | Cor | |||
| 6405 | OPEN N NR | 25 | 80 | 21 | 1.5 | 34.5 | 17.5 | 0.53 |
| 6406 | OPEN N NR | 30 | 90 | 23 | 1.5 | 43.5 | 23.9 | 0.735 |
| 6407 | OPEN N NR | 35 | 100 | 25 | 1.5 | 55 | 31 | 0.952 |
| 6408 | OPEN N NR | 40 | 110 | 27 | 2 | 63.5 | 36.5 | 1.23 |
| 6409 | OPEN N NR | 45 | 120 | 29 | 2 | 77 | 45 | 1.53 |
| 6410 | OPEN N NR | 50 | 130 | 31 | 2.1 | 83 | 49.5 | 1.88 |
| 6411 | OPEN N NR | 55 | 140 | 33 | 2.1 | 89 | 54 | 2.29 |
| 6412 | OPEN N NR | 60 | 150 | 35 | 2.1 | 102 | 64.5 | 2.77 |
| 6413 | OPEN N NR | 65 | 160 | 37 | 2.1 | 111 | 72.5 | 3.3 |
| 6414 | OPEN N NR | 70 | 180 | 42 | 3 | 128 | 89.5 | 4.83 |
| 6415 | OPEN N NR | 75 | 190 | 45 | 3 | 138 | 99 | 5.72 |
| 6416 | OPEN N NR | 80 | 200 | 48 | 3 | 164 | 125 | 6.67 |
| 6417 | OPEN N NR | 85 | 210 | 52 | 4 | 165 | 128 | 7.95 |
| 6418 | OPEN N NR | 90 | 225 | 54 | 4 | 184 | 149 | 11.4 |
| 6419 | OPEN N NR | 95 | 240 | 55 | 4 | 196 | 153 | 13.4 |
| 6420 | OPEN N NR | 100 | 250 | 58 | 4 | 206 | 175 | 15 |
| 6421 | OPEN N NR | 105 | 260 | 60 | 4 | 207 | 179 | 16.8 |
| 6422 | OPEN N NR | 110 | 280 | 65 | 4 | 247 | 227 | 21.3 |
Application

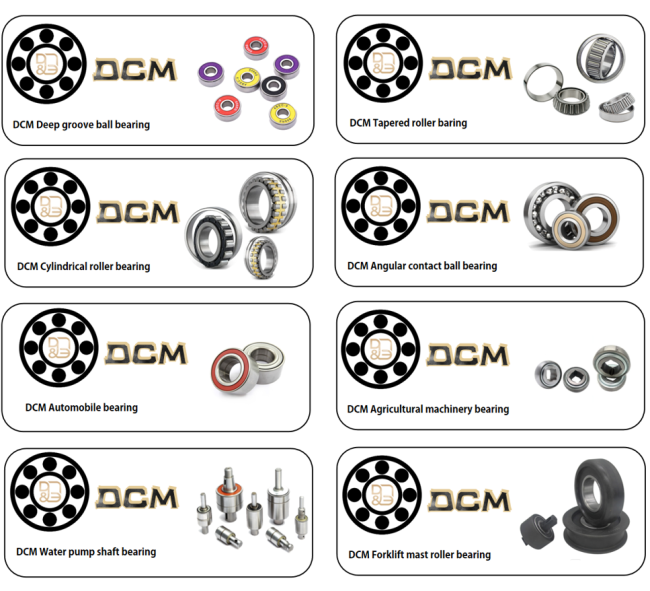

Main Products
Packaging & Shipping
FAQ
Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee. If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express. If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our customers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our customers.
Q4.When can I get a price?
We usually quote within 24 hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
