Wire Spider Star Filter Cage Silicon Coating Pleat Cage 138mm Spider Cage Mild Steel Bag House Cage

Wire Spider Star Filter Cage Silicon Coating Pleat Cage 138mm Spider Cage Mild Steel Bag House Cage

1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

2. Instruction

Style	star cage / pleat cage / spider cage
Pleats No.	12 pleats
Material	Q235 mild steel
Diameter	138		mm
Vertical Wire	Number	12	pcs
	Thickness	4	mm
Spider	Type	wire
	Thickness	4	mm
	Distance	150-250	mm
Length	TBD		mm
Structure	one section
Joining Method	No
Top Cap	Type	weld U shape top cap
	Size	138/185	mm
	Thickness	1-1.2	mm
	Fix	weld to cage
Venturi	Size	no	mm
	Thickness	1	mm
	Fix	weld to top cap
Bottom Cap	Type	weld bottom cap
	Size	130	mm
	Thickness	1.5	mm
	Fix	weld to cage
Finishing	Type	silicon coating
	Thickness	90-140	um
	Color	black
Pack	steel crate

3. The Match of Star bags and Cages

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages


4. Cage test

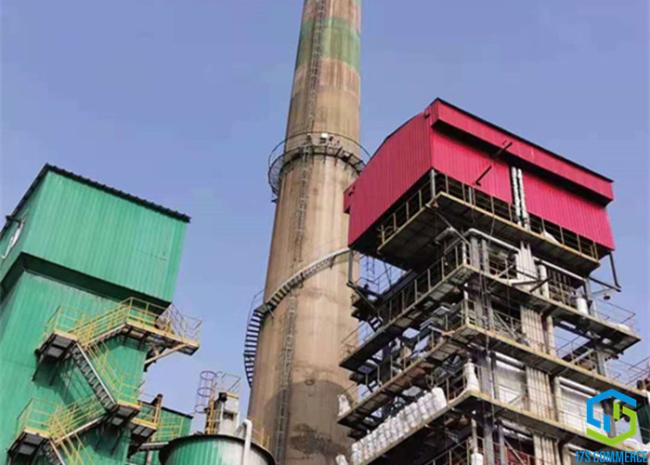

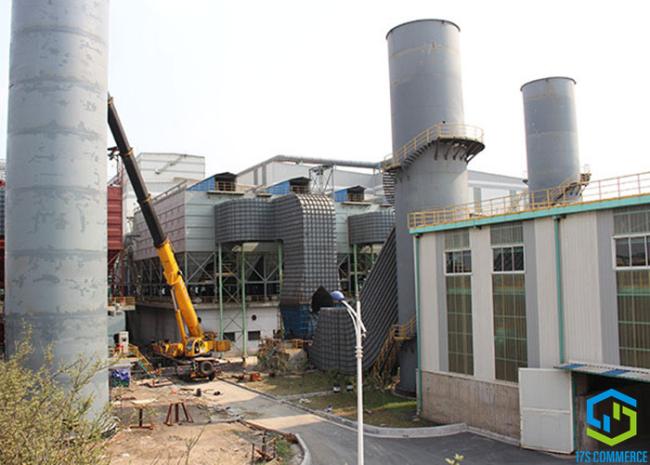

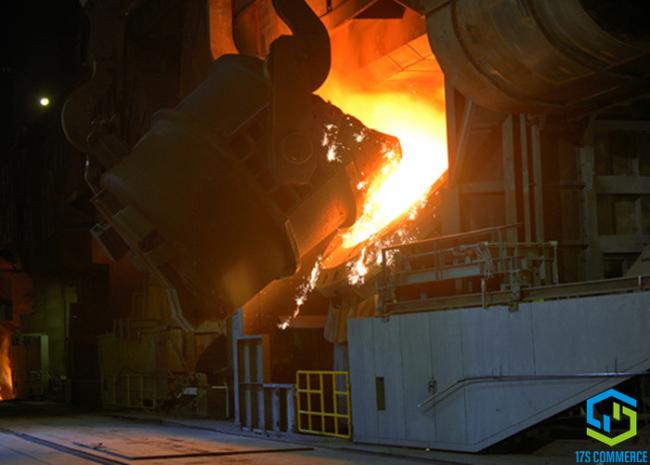

5. Application
