BNC Connector Acoustic Emission Sensor High Temperature Piezoelectric Sensor -20 To 350 Degrees Celsius
Price:
USD550
MOQ:
1 Piece
Delivery Time:
1-7 days
Brand:
QingCheng Ltd.
Product Description
GH150/1 High Temperature AE Sensor
High temperature AE sensor with 0.5 meters high temperature resistant metallic tube and 2 meters cable, shell and contact surface are stainless invar steel, could be installed in ultra high temperature area.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 150kHz |
| Frequency Range | 60kHz-400kHz |
| Sensitivity Peak Ref V/(m/s) | >73dB |
| Working Temp. | -20 to 350℃ |
| Size(DxH) | 19×19.5mm |
| Weight | 105g |
| Case Material | Stainless Invar Steel |
| Face Material | Stainless Invar Steel |
| Protecting Grade | IP68 |
| Connector | BNC on integral cable |
| Connector Location | Side |
| Accessories | |
| Signal cable model | SYV-50-3/STYV-50-2 |
| Hold-down | H20 |

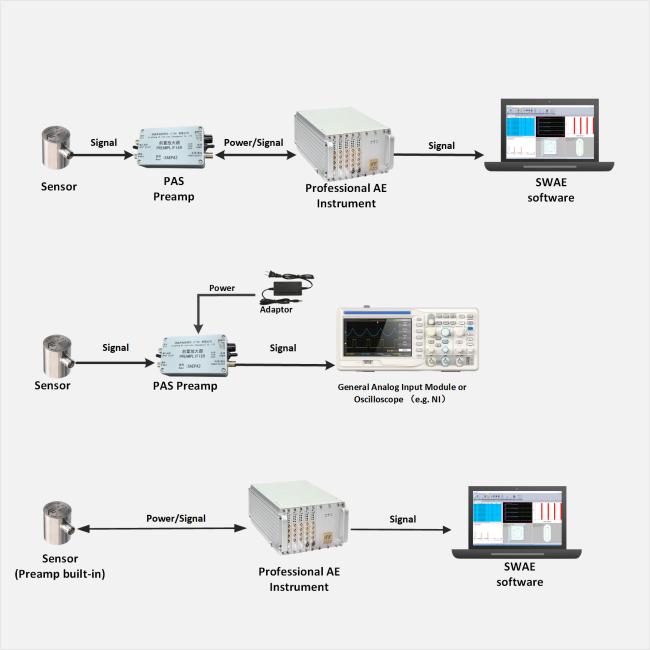

| Preamplifier | PAS/PAV |
QingCheng Ltd is an non-destructive testing systems and condition monitoring solutions manufacturer and global supplier. We are the leader global company in IIoT acoustic emission online monitoring systems of our own design, as well as other NDT systems. Our mission is to provide unattended high quality and reliable online condition monitoring solutions for predictive maintenance of valuable industrial assets in the world.
Our main products are acoustic emission (AE) systems, including various AE sensors, pre-amplifiers, AE acquisition and processing instruments and accessories. Our featured products are the newly developed IoT-AE online monitoring system, RAEM. We also design and manufacture some handheld ultrasonic devices, ultrasonic thickness detectors and ultrasonic flaw detectors respectively.
We also develop and provide professional analysis software and IoT Cloud platform that works with our instruments. We also accept customized design and provides solutions and technical supports services.
Our products and solutions have helped many customers in China and worldwide to achieve their purposes in laboratory and in industrial scales.
FAQ
1.What is the price term?
FOB Guangzhou.
2.What’s the warranty time?
12 months after shipment date
3.What’s the delivery date?
30-45 days after receiving the T/T payment.
4.How to deal with the faulty part if exceeds the warranty time?
Customer can return the faulty parts for our testing and maintaining, all the logistic cost and maintaining fee should be at
customer’s cost.
5.Whether OEM and ODM is available?
Yes.
FOB Guangzhou.
2.What’s the warranty time?
12 months after shipment date
3.What’s the delivery date?
30-45 days after receiving the T/T payment.
4.How to deal with the faulty part if exceeds the warranty time?
Customer can return the faulty parts for our testing and maintaining, all the logistic cost and maintaining fee should be at
customer’s cost.
5.Whether OEM and ODM is available?
Yes.
