Product Description
This Aluminum Brazing Furnace is a high-efficiency resistance furnace designed for precision heat treatment processes. Engineered for manufacturing plants, it features a customizable design and robust construction to ensure reliable, continuous operation in demanding industrial environments.
Key Advantages
1.Enhanced Durability & Efficiency: The chain-driven stainless steel roller system circulates the high-temperature resistant mesh belt, extending its service life while reducing furnace heat loss and improving overall thermal efficiency.
2.Superior Temperature & Atmosphere Uniformity: An internally mounted fan ensures even temperature distribution and disperses the protective (carburizing) atmosphere uniformly, which enhances process speed and final workpiece quality.
3.Improved Surface Finish: An exhaust fan at the furnace rear promptly removes waste gases, contributing to a superior gloss on the workpiece surface.
4.Convenient Maintenance: A slag removal port at the bottom of the furnace body allows for easy and convenient cleanup of residual slag.
5.Advanced Sealing Technology: The innovative furnace door seal design dramatically reduces atmosphere consumption by 55-65%, allows for deeper permeation, and increases efficiency by 30-40% under maintained pressure (≥10-100Pa).
Technical Parameters
| Item | Specification |
|---|---|
| Heating Method | Electricity |
| Maximum Usable Height Above Mesh-belt | 250 mm |
| Mesh-belt Speed Range | 200 - 1000 mm/min |
| Mesh-belt Width | 1000 mm |
| Loading Surface Height | 850 mm |
| Power | Rated Power: 700 KW |
| Total Furnace Length | Approx. 47 meters |
| Muffle Length | 10 m |
| Rated Working Temperature | 650 °C |
| Cooling Method | Water Cooling or Air Cooling |
| Protective Atmosphere | Nitrogen |
| Voltage | As per Requirement |
| Dimensions (L*W*H) | Custom Made |
| Weight Range | 2T - 35T |
| Certification | CE |
| Warranty | 1 Year |
| After-sales Service | Engineers available for overseas machinery service |

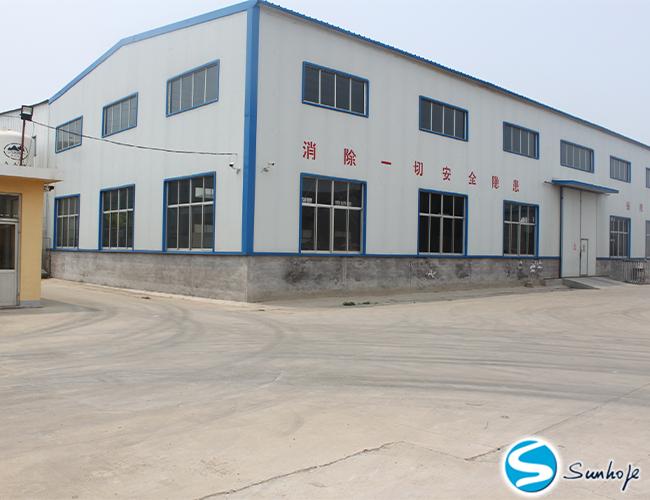

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
1.Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
2.Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.

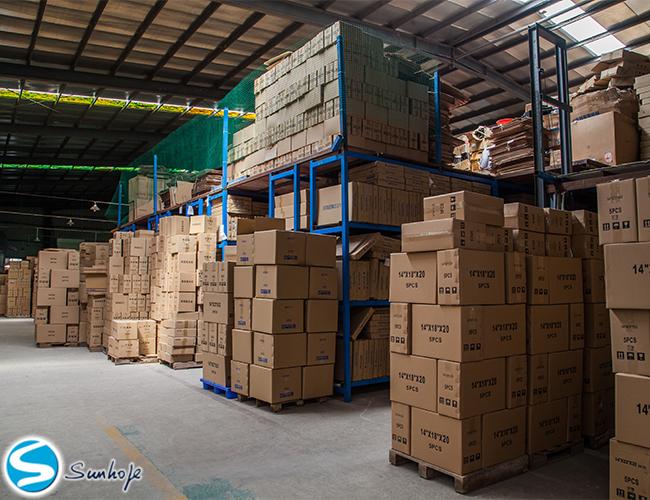

3.Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
4.Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
1.Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
2.Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
3.Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
4.True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
