Radiator Plastic Tank Crimping Machine High Precision Quick Die Change
Radiator Plastic Tank Crimping Machine High Precision Quick Die Change
Product Overview
This radiator plastic tank crimping machine is a specialized press designed for crimping and riveting plastic water tanks onto radiator core headers. Also known as a radiator header crimper or plastic tank assembly press, it delivers a consistent, leak-proof mechanical seal – critical for automotive radiator production lines. The machine works with aluminum and copper radiators used in cars, trucks, and construction equipment.
Key Advantages
-
High precision crimping for leak-proof sealing – Synchronized 6-cylinder pneumatic drive (or optional servo motor) applies uniform pressure around the entire tank flange, eliminating leak paths. This high precision crimping machine for radiator plastic tanks ensures reliable sealing even under thermal cycling.
-
Quick die change for multi-spec production – The modular tooling system enables a quick mold change in minutes, drastically reducing downtime when switching between different radiator sizes or tank shapes. Perfect for manufacturers running small batches or multiple SKUs.
-
Wide compatibility with radiator types – Handles core heights from 300–900 mm, widths 200–850 mm, and thicknesses 16–56 mm. A versatile customizable crimping press suitable for cars, SUVs, trucks, and construction machinery radiators.
-
Customizable control & automation – Standard pneumatic + mechanical positioning is reliable and cost-effective. Upgrade to servo-driven tank crimping with PLC and HMI touch screen for programmable force, position, and recipe storage – ideal for automated production lines.
-
Robust and safe design – Welded steel frame with baked enamel finish, protective safety enclosure, and intuitive control panel. Built for 24/7 industrial use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6-cylinder Pneumatic / Servo Radiator Plastic Tank Crimping Machine |
| Control | Pneumatic + mechanical positioning (servo upgrade optional) |
| Working Pressure | 0.6–0.8 MPa (standard 0.8 MPa) |
| Power Supply | 220V/380V 50Hz (optional) |
| Applicable Core Size | Height 300–900 mm; Width 200–850 mm; Thickness 16–56 mm |
| Cycle Time | Single-side crimping: 15–25 sec/piece; Both sides: 60–80 sec/piece |
| Drive | 6 synchronized cylinders (servo motor upgrade available) |
| Weight | 800–1300 kg |
| Dimensions (approx.) | 1900×1200×1800 mm (varies by model) |
| Typical Applications | Plastic tank crimping for automotive radiators, condensers, heater cores |
Customization Options
We build every custom radiator tank crimping machine to your exact specifications:
-
Servo-driven precision axes – programmable crimping force and stroke for different tank materials
-
PLC + HMI touch screen – store recipes for hundreds of radiator models, recall with one touch
-
Automatic tank loading/unloading – reduce manual labor, increase throughput
-
Tailored tooling – designed for unique plastic tank geometries or non-standard core sizes
-
Line integration – connect seamlessly with upstream brazing furnaces or downstream leak testers
Share your radiator specs and production volume – we will engineer a crimping solution that fits your line perfectly.

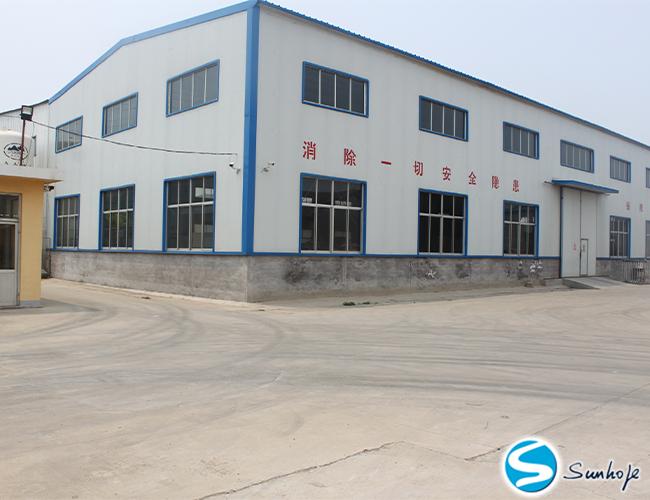

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
- Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
- Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
- Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
- Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
- Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
- Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
- Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
- True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
