Automatic Hydraulic Fin Forming Machine for Automotive Radiators, Intercoolers and Oil Coolers Customizable Fin Tooling

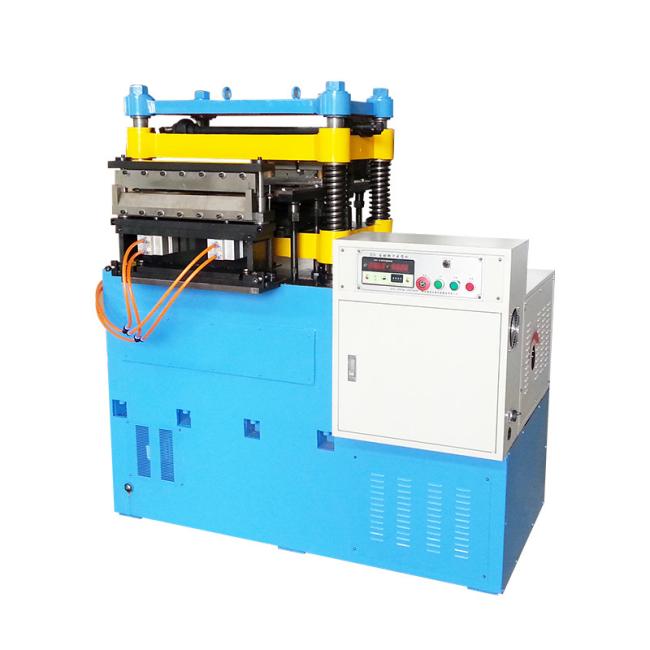

This fin forming machine is a specialized fin press machine designed for high-precision stamping of aluminum and copper heat exchanger fins. Built on a rigid three-beam, four-column hydraulic frame with a pneumatic strip feeding system, the machine delivers exceptional stability and accuracy for mass production of radiator fins, intercooler fins, and oil cooler fins. The digital control panel allows intuitive setting of stroke count, length, and speed in auto or manual mode. Quick-change fin dies support louvered fins, corrugated fins, and serrated fin profiles, making it a versatile fin making machine for automotive heat exchanger manufacturing. Primarily engineered for radiator, intercooler, and oil cooler fin production for Toyota,Mahindra, and other mainstream vehicle models in the Middle East and India markets, this fin stamping machine is equally suited for industrial cooling applications, including air conditioner condensers, evaporators, and compact heat exchanger fins. Custom tooling engineering is available to match your exact production specifications.
- Heavy-duty four-column hydraulic structure resists off-center loads, ensures stable stamping accuracy, and operates at low noise (≤75 dB)
- Pneumatic feeding with digital length control delivers ±0.1 mm feeding accuracy and ±0.5 mm cutting accuracy per segment
- Interchangeable fin dies produce wave heights from 4 mm to 12 mm and adjustable fin pitches from 3 mm to 8 mm; fast changeover between louvered, corrugated, and serrated fin profiles
- Fully customizable fin tooling — we design and manufacture dedicated dies for your specific vehicle cooling fins (e.g., Toyota intercooler fins) based on your sample or drawing, serving both aftermarket and OEM cooling system requirements
- PLC-controlled operation with stepless speed regulation (40–80 strokes/min), stroke counter, length presetting, emergency stop, overload protection, and material break detection ensures reliable batch production
- Hydraulic drive protects tooling better than conventional mechanical presses, making this fin press machine ideal for small-to-medium batch, high-precision fin production
| Parameter | Specification |
|---|---|
| Nominal Pressure | 150 kN (15 tons) |
| Max. Strip Width | 300 mm (covers most automotive radiator fins) |
| Material Thickness | Aluminum: 0.08–0.25 mm; Copper: 0.05–0.15 mm |
| Fin Dimensions | Height: 4–12 mm (die-customized); Pitch: 3–8 mm (adjustable) |
| Strokes per Minute | 40–80 (stepless adjustable) |
| Feeding Accuracy | ±0.1 mm |
| Cutting Accuracy | ±0.5 mm per segment |
| Control System | Digital PLC with stroke counting and length setting |
| Drive System | Hydraulic press + pneumatic feeder |
| Air Supply Pressure | 0.5–0.7 MPa |
| Power Supply | 380 V / 50 Hz, three-phase four-wire |
| Motor Power | 7.5 kW (hydraulic unit and motor) |
| Overall Dimensions (L×W×H) | 1200 × 800 × 1500 mm |
| Machine Weight | Approx. 1200 kg |
Fin profiles, wave heights, and fin pitches are defined entirely by the interchangeable die set — a single fin forming machine can produce fins for multiple radiator types simply by switching dies. We provide a complete custom die design and manufacturing service: share your target vehicle model (Toyota, Mahindra, etc.) or send a fin sample, and we will engineer the precise fin tooling to meet your production needs. This fin stamping machine supports both aluminum fin and copper fin materials, making it a flexible investment for workshops and factories serving automotive cooling, HVAC heat exchangers, and diverse aftermarket and OEM manufacturing requirements.
