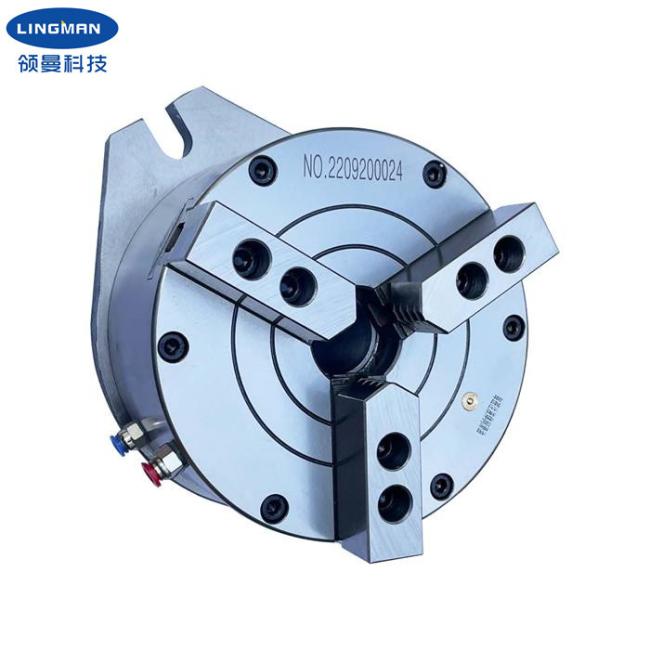

Lingman Hot-selling High-quality Double-valve Front-mounted Pneumatic Chuck Three-jaw Chuck for CNC Machine Tools
Vertical hollow chuck, hydraulic and pneumatic dual-purpose type, suitable for drilling machines, milling machines and machining centers
1. Description
Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.
Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.
This product is state-patent with independent intellectual property.This product is equipped with an internal power cylinder, which supplies air from the side of the chuck body to achieve clamping and release, eliminating the need for a pull rod. The center has a through hole, allowing long shaft bar stock to pass through.
The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

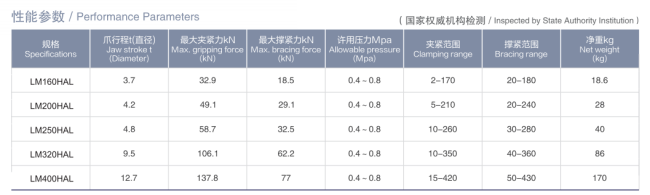

2. Performance Parameters
| Model number | LM160-400HAL |
| Jaw stroke | 3.7-12.7mm |
| Max.gripping force | 32.9-137.8kN |
| Max.bracing force | 18.5-77kN |
| Allowable pressure | 0.4-0.8Mpa |
| Clamping range | 2-420 |
| Bracing range | 20-430 |
| Net weight | 18.6-170kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

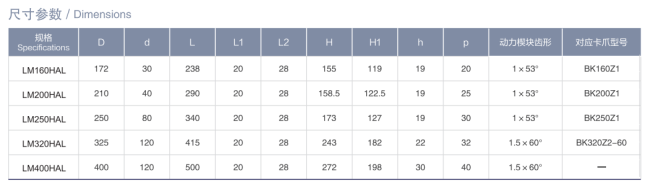

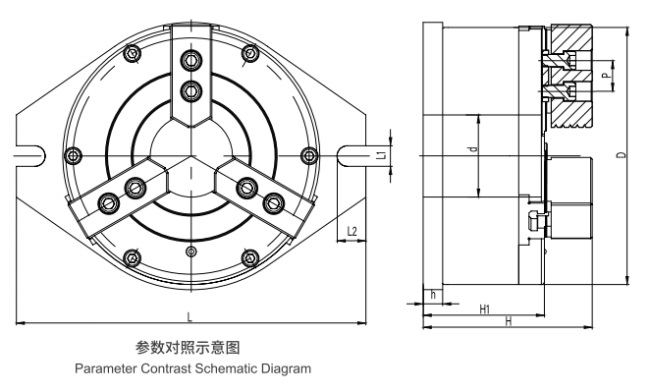

3. Dimensions
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. Production Line
