Lingman JAB Series air Compression Rotary Chuck with High Rotational Speed Long Service Life and Low Temperature Rise
JAB series pneumatic return collet chuck
1. Description
Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.
Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.
1.This chuck can be used with either internal or external clamping configuration.
2.Heat-treated steel unibody structure, bearing no load, high speed, long life, low temperaturerise.
3.Bi-directional power, forced opening of the collet, never jamming. When the air source isinterrupted, the collet is in self-locking state.
4. Direct flange connection to the spindle, easy and quick installation, through the three-pointcombination valve can be connected to the machine system control.
5. Quick change of collet to facilitate product replacement, push forward collet without displace-ment, normal control of the length of the workpiece.
6. Body accuracy within 0.005mm, clamping accuracy within 0.015mm (the higher the accuracy ofthe general-purpose collet,the higher the accuracy).
The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.
2. Performance Parameters
| Model number | JAB-15/25/40/60 |
| Max speed rpm/min | 3000-4000 |
| Piston stroke | 4mm |
| Clamping stroke | 1.5-2mm |
| Max torque N.m | 3-35 |
| Used air pressure | 3-8kg/cm |
| Weight | 3.2-20.5kg |
| Clamping type | push forward |
| Max pressure Mpa. | 2.4-2.8kgf/cm² |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

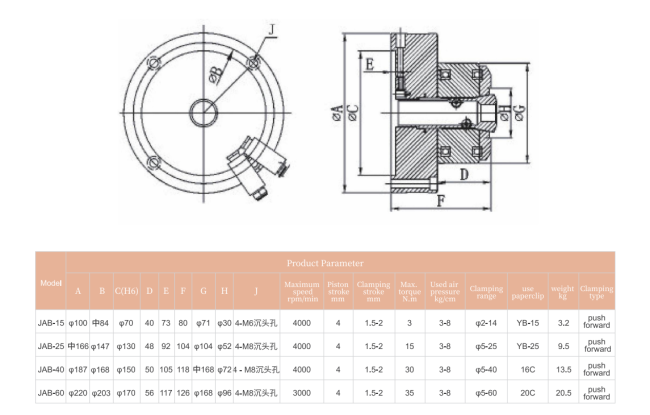

3. Dimensions
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
