ROD-TYPE HOLLOW FOUR-JAW DOUBLE-ACTING FEEDING CHUCK(FULL THROUGH HOLE)
1. Description
Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.
Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.
This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle with a chuck that can firmly clamp the workpiece while rotating. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions.
With large clamping force, convenient adjustment, stable clamping and high efficiency, this product has highly competitive compared with similar products in the market.
The center of the product is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.
The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.
2. Performance Parameters
| Claw stroke/ diameter | 70mm |
| Maximum clamping force | 2.1KN |
| Allowable pressure | 0.2-1.0MPa |
| Limit speed | 400r/min |
| Clamping range | 0-220mm |
| Central height | 145mm |
| Rotational inertia | 0.41kg.㎡ |
| Rotating part weight | 65kg |
| Whole unit weight | 93kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

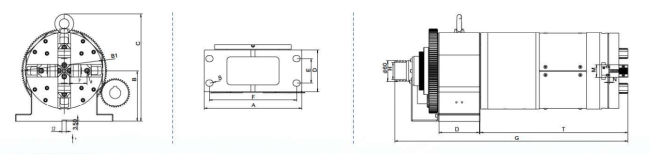

3. Dimensions
| A | 280 |
| B | 145 |
| B1 | 220 |
| C | 268 |
| D | 120 |
| E | 70 |
| F | 250 |
| S | 18 |
| T | 424 |
| G | 629 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. Production Line
