Lingman 4H Series Four-Jaw Hollow Laser Chuck with Highly Rigid Structure and High Clamping Accuracy Customized for CNC Lathe Processing

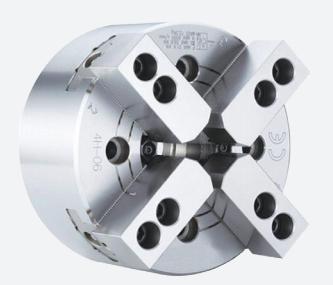

4H four-jaw through-hole power chuck
1. Description
Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.
Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.
This producthas a built-in power oyinder, which supplies air from the side to achieve damping and loosening. elninating the need for a te rod structure.Itissuitable for lathe machines, such as drilling, milling machines and machining centers.
The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.

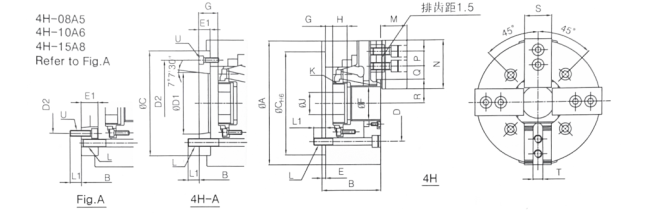

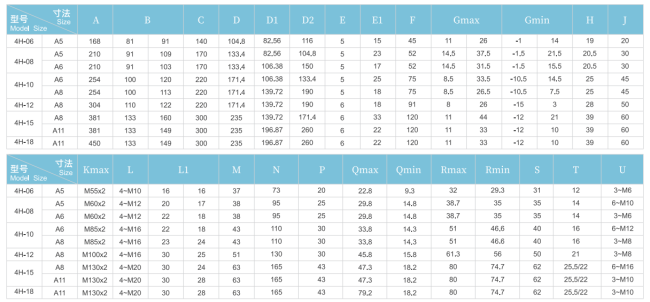

2. Dimensions
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. Production Line
