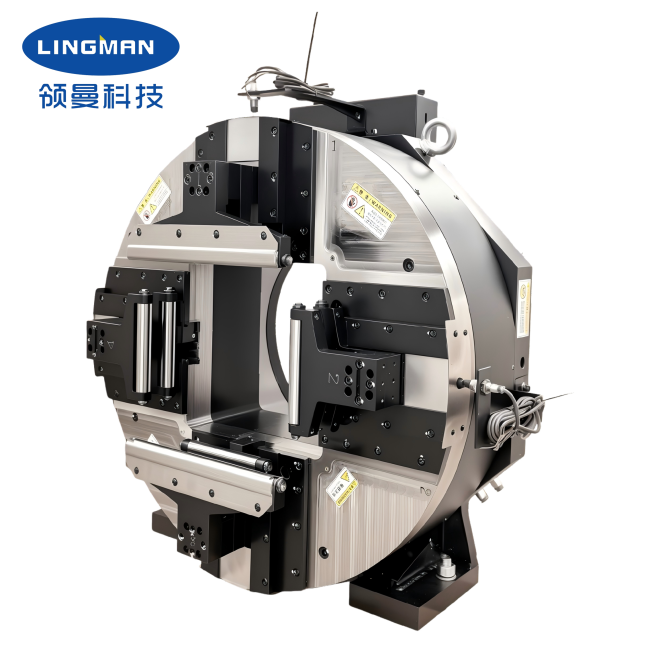

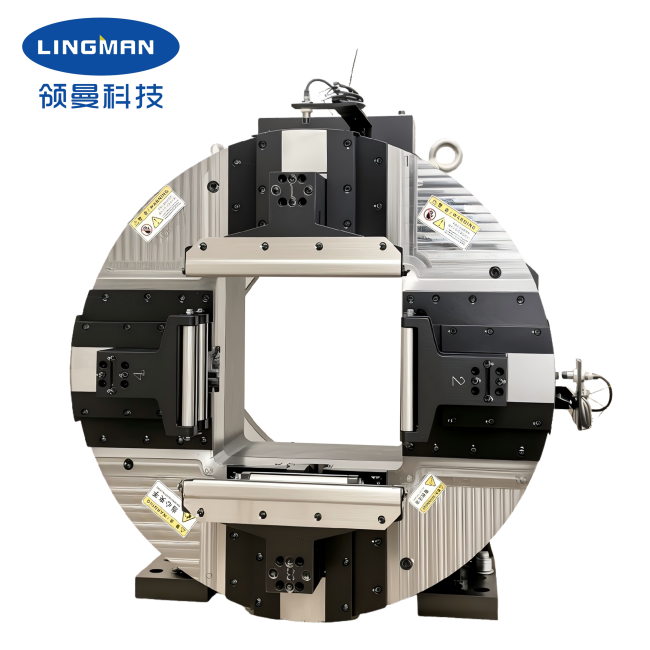

Lingman New Four-jaw Dual-action Chuck F265DF Wide Clamping Range Suitable for Pipe Cutting Machines and CNC Processing
Lingman New Four-jaw Dual-action Chuck F265DF Wide Clamping Range Suitable for Pipe Cutting Machines and CNC Processing
1. Description
Our company is a professional manufacturer of producing chucks for CNC lathe and laser cutting machine.
Various kinds of laser chucks are provided. We provide laser chucks for many well-known laser cutting machines at home and abroad. Our products are also welcomed by many customers.
The products can be widely used in pipe cutting systems such as special laser pipe cutting machines.
2. Performance Parameters
| Model number | F265DF |
| Central height | 340mm |
| Diameter stroke | 260mm |
| Clamping range | 6-265mm |
| Maximum clamping force | 2.1KN |
| Applicable air pressure | 0.25-1MPa |
| Rotational inertia | 12.2kg.㎡ |
| Whole unit weight | 300kg |
| Rotating part weight | 200kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
4. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
5. Production Line
