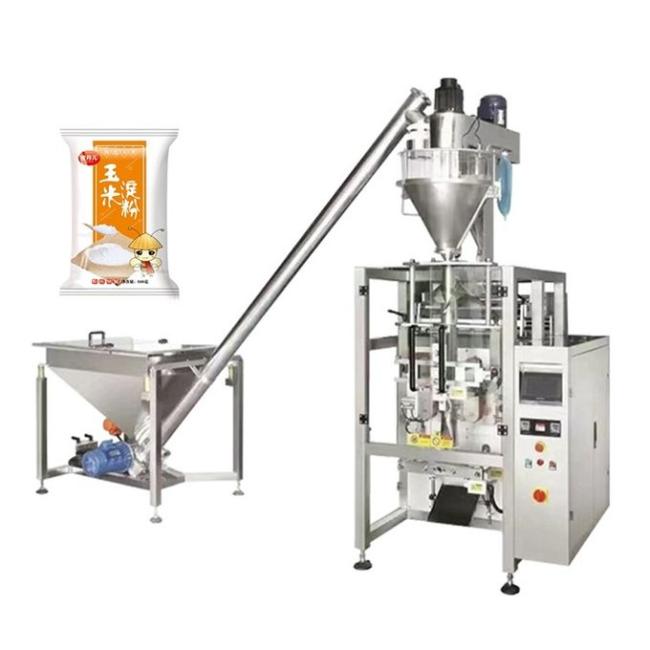

4.8 Ton / Day Automatic Chilli Milk Powder Pouch Packing Machine
1 . Material conveying, measuring, filling, bag-making, date-printing, finished product outputting are all completed automatically
2 . High measuring accuracy and efficiency.
| 2 . Technical Specification | |
| Model | ZH-BA |
| Weighing range | 10-5000g |
| Packing speed | 10-40 Bags/Min |
| System Output | ≥4.8 Ton/Day |
| Packaging Accuracy | Based on product |
| Bag type | Pillow bag/gusset bag/Four edge sealing bag,5 edge sealing bag |
| Bag Size(mm) |
VFFS 320 : (W)60-150 (L)50-200 VFFS 420 : (W)60-200 (L)60-300 VFFS 520: (W) 90-250 (L)80-350 VFFS 620: (W) 100-300 (L)100-400 VFFS 720: (W) 120-350 (L)100-450 |
3. Application
It is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder.washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
4 .System Units :
1 . Auger Lifter (Lifting and Feeding)
2 . Auger Filler (Weighing the powder for filling the vertical packing machine)
3 . VFFS Packing Machine(Packing powder to bag,we have different model of packing machine)
4 . Products Conveyor (we have chain type and belt type )
Some project in factory
Our Factory :
