4x4 ARFF Rapid Intervention Fire Fighting Truck ARFF Airport Rescue Vehicle China Factory with Good Price
Price:
USD500,000-USD530,000
MOQ:
1 Unit
Delivery Time:
8-10 months
Brand:
CXFIRE
Product Description
4x4 ARFF Rapid Intervention Fire Fighting Truck ARFF Airport Rescue Vehicle China Factory with Good Price
1. 4x4 Airport ARFF Rapid Intervention Fire Fighting Truck
This vehicle is a special fire-fighting vehicle for the airport. It has strong power and excellent road passing ability. It can arrive safely and quickly for fire-fighting and rescue.The detailed parameters are as follows.
2. The Whole Fire Truck's Parameters
| No. | Main Items | Technical Parameters |
| 2.1 | Model |
SXF5192GXFJX55 |
| 2.2 | Overall Dimension |
8520mm×2550mm×3940mm |
| 2.3 | Full Load Weight |
19400kg |
| 2.4 | Number of the Crew | 3 (include driver) |
| 2.5 | Max. Speed | 110km/h |
| 2.6 | Capacity | 5000L Water & 500L Foam. PP composite material liquid tank |
| 2.7 | Fire pump flow rate | 100L/s @ 10bar |
| 2.8 | Fire monitor | 100L/s flow rate, 90m shoot range |
| 2.9 | Painting | Red paint of U.S. PPG |
3. SCANIA Chassis
- Manufacturer: Sweden SCANIA
- Model: SCANIA P450
- Drive type: 4*4
- Wheelbase: 4550mm
- Engine model: SCANIA DC13 148 W02
- Engine type: In-line 6-cylinder, 4-stroke, water-cooled, XPI high-pressure common rail injection system, with exhaust gas turbocharging and central air intake cooling system
- Rated power: 397Kw
- Gearbox form: Automatic transmission
- PTO: Chelsea 870/C
- Fuel tank capacity: 200L
4. Fire Extinguishing System
4.1 Fire Pump
- Flow Rate: 100L/s @ 10bar
- Vacuum Pump: Electric vacuum pump
- Priming Manner: Automatic
- Suction Height: 7m
- Priming Time: ≤80s
- Location: Middle-mounted
4.2 Fire Monitor
- Flow Rate: 100L/s @ 10bar
- Shoot Range: Water ≥ 90 m, Foam ≥ 85 m
- Location: On the top of the tank
- Control Manner: Remote control
- Horizontal Rotation Angle 0°~320°
- Pitch Rotation Angle: -20°~70°
4.3 Liquid Tank
- Capacity: Water 5000L, Foam 500L.
- Material: PP composite material and Never Rust.
- Structure: Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
4.4 Control Panel
- Structure: Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level.
- Location: In pump room.

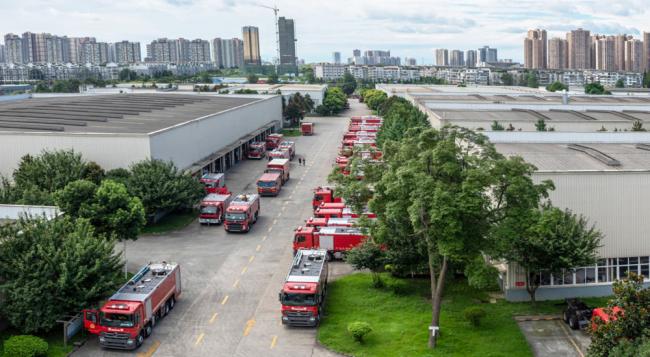

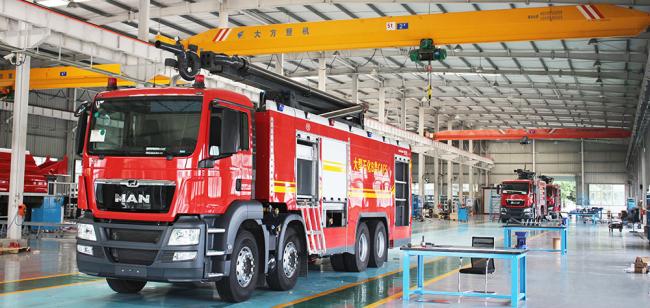

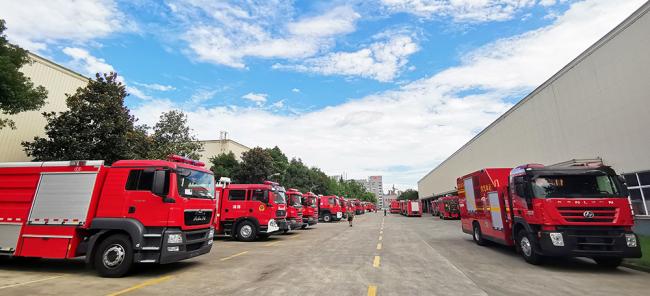

5. Company Pictures for Reference
