Rigid Double Sided Fr4 Printed Circuits Board with Immersion Nickel Gold

Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 60,000 square meters.


Product Details:

1. Single, Double side & Multi-layer PCB.

2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.

3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,

4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.

5. Quantities range from prototype to medium&big batch production.

6.100% E-Test.

Lead Time:


FAQ

Q1.What is needed for a quotation?

A: PCB: Quantity, Gerber file, and Technic requirements(material, surface finish treatment, copper thickness, board thickness,...)
PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. Are my files safe?
A: Your files are held in complete safety and security. We protect the intellectual property of our customers in the whole process. All documents from customers are never shared with any third parties.

Q4. MOQ?
A: There is no MOQ in the ABIS PCB. We are able to handle Small as well as large volume production with flexibility.

Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.

Q6. Do you accept process materials supplied by clients?

A Yes, we can provide a component source, and we also accept component from client

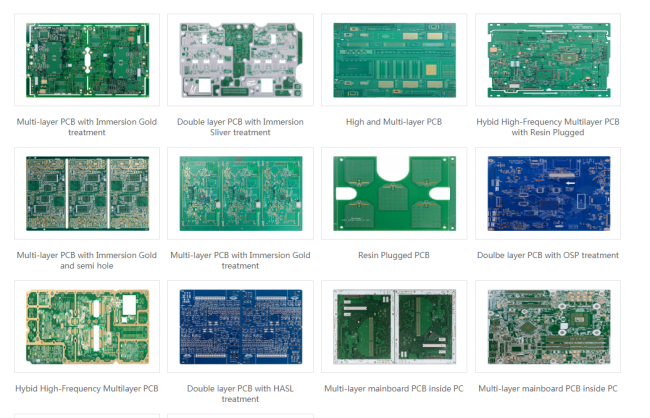

PCB Types:

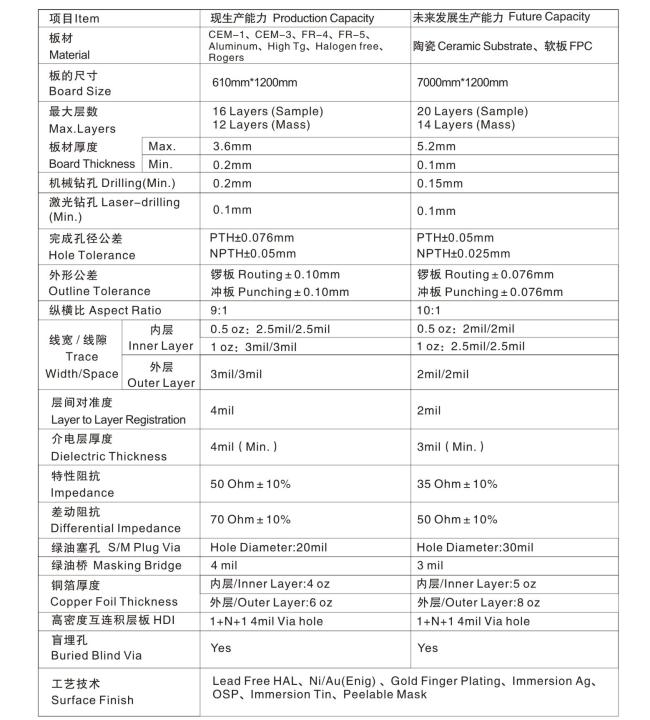

Capacity:

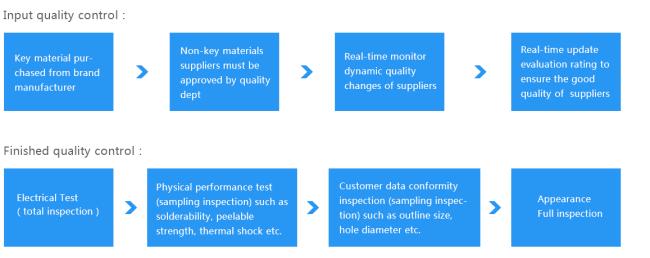

Quality Control:





ABIS cares every your order even 1 piece
