PI Stiffeners Hard Gold Plating Multilayer PCB Flex Circuit Board
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
0.5-4 week
Brand:
ABIS
Product Description
PI Stiffeners Hard Gold Plating Multilayer Flex PCB For Medical Device
1. ENIG +Hard gold plating surface finish.
2. Applied to medical device.
3. Polyimide stiffeners process.
4. 0.2mm finish thickness.
5. PI material.
| 1 | Layers | 4 layer |
| 2 | Material | Polyimide |
| 3 | PCB thick | 0.2mm |
| 4 | Special process | PI stiffeners |
| 5 | Surface finish | ENIG+Hard gold |
| 6 | Coverlay thickness | 12.7-50um |
| 7 | Min hole ring | 5mil |
| 8 | Min line copper | 0.12mm |
| 9 | Min gap | 0.12mm |
| 10 | Usage | Medical device |
| 11 | Min hole | 0.1mm |
| 12 | Silkscreen alignment tolerance | ±6mil |
| 13 | Silkscreen line | 5mil |
| 14 | Certification | ISO9001/14001,RoHS compliant,UL,TS16949,SGS |
| 15 | Test voltage | 50-300V |
FAQ
Q1:What's finish PCB thickness?
A: 0.05-2.5mm.
Q2:How about the outline tolerance?
A: +/-0.05mm.
Q3:Which kind of material main use?
A: Polyimide,FR4,PET,PEN and heavy copper etc.
Q4: Rigid-flex board can you provide?
A: Yes 2-10layer is fine to us.
Q5: How's the hole ring?
A: 5mil min for 35um cu flex PCB.
Q6: How about your delivery?
A: DHL,UPS,Fedex etc stable forwarders.

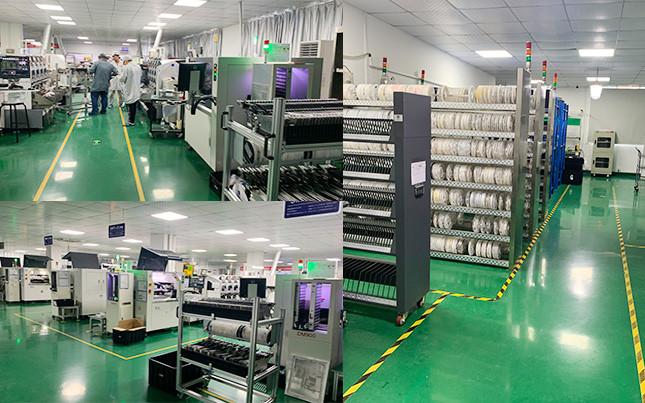

Plant glance:
