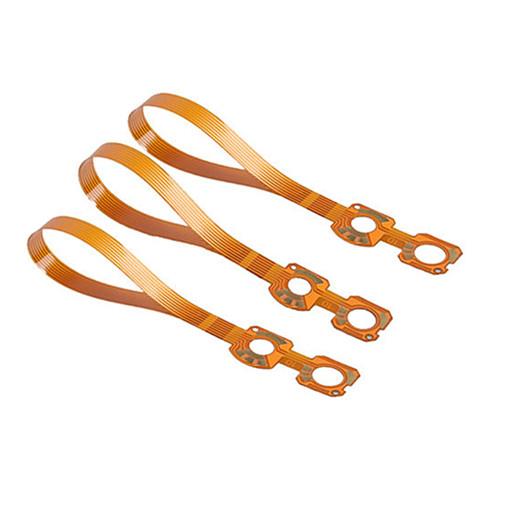

6.0mm Thickness FPC FPCA Flexible PCB Board FR4 CEM1 ABIS
flex PCB FPC FPCA for ventilator detector/scanner/emergency equipment/thermometer
Single Rigid PCB FR4 Print Circuit Board Green Ink Mainboard
Abis Circuits C o., Ltd is a professional PCB manufacturing which is focus on double side, Multilayer and HDI pcb mass production. The company was established on Oct,2006.we have two factories together ,The factory in Shenzhen is specialized in small to middle volume orders and the factory in shaoguan,GuangDong Province is for big volumn and HDI.
Nowadays we have more than 1100 employees over the two factories to cope with increasing demand. Factory Operation plant space (I) 10000 Square meters (II) 40000 Square Meters Employees (I) 300 Man Powers (II) 800 Man Powers Eng.Technical (I) 20 QA QC Engineers (II) 60 QA,QC Engineers
Quality Control
Specification
| PCB CAPABILITY | |
| Layout number | 1-20 layers |
| Material | FR4,Tg=135,150,170,180,Rogers, Ceramic and Aluminum based |
| copper thickness | 1/2oz,1oz,2oz,3oz,4oz,5oz |
| Board thickness | 8-236mil(0.2-6.0mm) |
| Min.line width/space | 3/3 mil(75/75um) |
| Tolerance of hole size | 2 mil(o.05mm) |
| solder mask color | Green,blue,yellowwhite,black,red |
| Surface treatment | HASL(ROHS),ENING,OSP,IMMERSION SILVER,IMMERSION TIN,flash gold |
| v-cut | Yes |
| Blind hole/buried hole | Yes |
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Factory
Pre-Sale and After-Sale Service
1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
A: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal, final assembly, testing and other value-added service.
A: As for MOQ, we have no request about it. Even 1 pcs is ok for us.
A: For PCB: Quantity, Gerber file and technic requirements (material, size, surface finish treatment, copper thickness, board thickness).
For PCBA: PCB information, BOM, Testing documents.
A: We are willing to sign the NDA effect by customers side local law and promising to keep customers data in high confidential level.
A: Automotive, Medical, Industry Control, IOT, Smart Home, Military.
A: Yes, our office address is located in Room 515 Jiurun Business Building No. 1658 Husong Road Songjiang District Shanghai, Shanghai, China
Maybe we don't have the lowest price, but can guarantee you the best quality.
If you are interested, welcome to contact us. Here is the contact information as follows:
ABIS cares every your order even 1 piece
