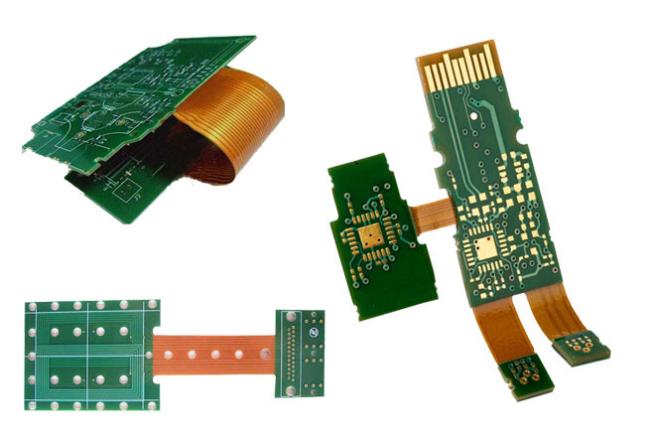

TS16949 3oz Multilayer Rigid Flex PCB Lead Free HASL 280um Aluminum
TS16949 3oz Multilayer Rigid Flex PCB Lead Free HASL 280um Aluminum
Technical capabilities:
| Layer | 1-20 layers |
| Material | FR-4,CEM-1,Aluminum base,Copper base,FR-1,CEM-3,High TG,FR4 Halogen Free, Rogers, TEFLON etc. |
| Board thickness | 0.2mm-6mm(normally 1.6mm) |
| Max. board size | 1200*600mm |
| Finished board thickness | 0.3-5mm |
| Min .drilled hole size | 0.1mm |
| Min. line width | 0.1mm(4mil) |
| Min. line space | 0.1mm(4mil) |
| Surface finish/treatment | HASL, lead free HASL ,Immersion Gold(ENIG),Immersion Tin ,Immersion Silver, OSP, Gold plating, Gold Finger, Carbon Ink, Peelable mask |
| Copper foil thickness | 18um-280um(0.5OZ-8OZ)(normally 1OZ) |
| Solder mask color | green/black/white/red/blue/yellow |
| Outline Tolerance | ±0.13mm |
| Impedance control Tolerance | ±10% |
| NPTH Hole Tolerance | ±0.075mm |
| PTH Hole Tolerance | ±0.05mm |
| Certificate | UL,ISO9001,ISO14001,SGS |
| Profiling punching | Routing, V-CUT, Beveling |
| Production capability | 720000M2/year |
Related Products:
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
Company Profile:
ABIS CIRCUITS CO., LTD reated in 2006,as a long history China based PCB supplier, ABIS manufactures different kinds of printed circuit boards, including MCPCB,CEM-1,CEM-3,and FR4,FR-4 high Tg, Rogers, Teflon, Arlon ets special material.
ABIS has set up two PCB factories in China: one for MCPCB producing, quick turn and small volumn making, and another for mass production. Currently, ABIS modern plants occupy total 10000 s.q.m facility, with more than 1100 stable and experienced workers. Professionalism and continuous optimization of manufacturing processes have positioned ABIS as a reliable and favorite partner for global companies.
*Flexible / Rigid Boards
*Single / Double / Multi Layer Boards
*Quick Turn Sevices
*Small Volume Production
Workshop:
Exhibition show:
FAQ:
Q1:When can I get the quotation?
A:We usually quote with 1 hour after we get your inquiry. If you are very urgent, please call us or tell us in your email.
Q2:Can you provide free samples for me?
A:Free samples depend on your order quantity.
Q3:I am a small wholesaler, do you accept small order?
A:It's no problem. If you're small wholesaler, we would like to grow up with you together.
Q4:How many days will samples be finished? And how about the mass production?
A:Generally 2-3 days for samples making. The lead time of mass production will depend on the order quantity and the season you place the order.
Q5:If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
