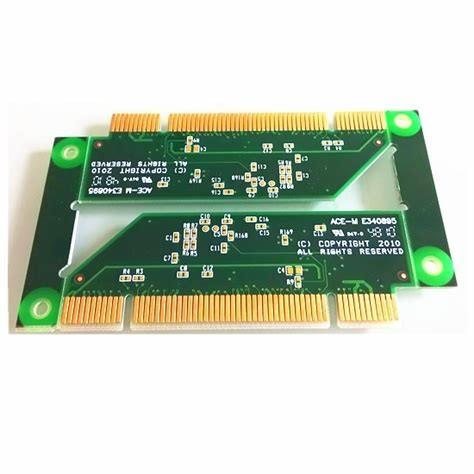

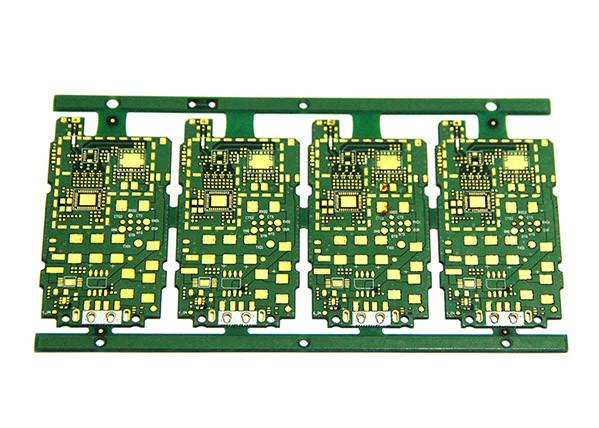

ISO14001 280um ENIG HDI PCB Board 5mm Thickness Flex Rigid PCB
ISO14001 280um ENIG HDI PCB Board 5mm Thickness Flex Rigid PCB
Technical capabilities:
| Layer | 1-20 layers |
| Material | FR-4,CEM-1,Aluminum base,Copper base,FR-1,CEM-3,High TG,FR4 Halogen Free, Rogers, TEFLON etc. |
| Board thickness | 0.2mm-6mm(normally 1.6mm) |
| Max. board size | 1200*600mm |
| Finished board thickness | 0.3-5mm |
| Min .drilled hole size | 0.1mm |
| Min. line width | 0.1mm(4mil) |
| Min. line space | 0.1mm(4mil) |
| Surface finish/treatment | HASL, lead free HASL ,Immersion Gold(ENIG),Immersion Tin ,Immersion Silver, OSP, Gold plating, Gold Finger, Carbon Ink, Peelable mask |
| Copper foil thickness | 18um-280um(0.5OZ-8OZ)(normally 1OZ) |
| Solder mask color | green/black/white/red/blue/yellow |
| Outline Tolerance | ±0.13mm |
| Impedance control Tolerance | ±10% |
| NPTH Hole Tolerance | ±0.075mm |
| PTH Hole Tolerance | ±0.05mm |
| Certificate | UL,ISO9001,ISO14001,SGS |
| Profiling punching | Routing, V-CUT, Beveling |
| Production capability | 720000M2/year |
Related Products:
Packaging & Delivery
ABIS CIRCUITS Company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. Also, we prepare some personalized services for all the orders.
-Common packaging:
- PCB: Sealed bag, Anti-static bags, Suitable carton.
- PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
- Customized Packaging: The carton outside will be printed the name of the customer address, mark, the customer needs to specify the destination and other information.
6.By Paypal,T/T,West Union,etc.
Company Profile:
Workshop:
Exhibition show:
FAQ:
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for 12 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2015, ISO14001: 2015, UL, SGS,RoHS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback
