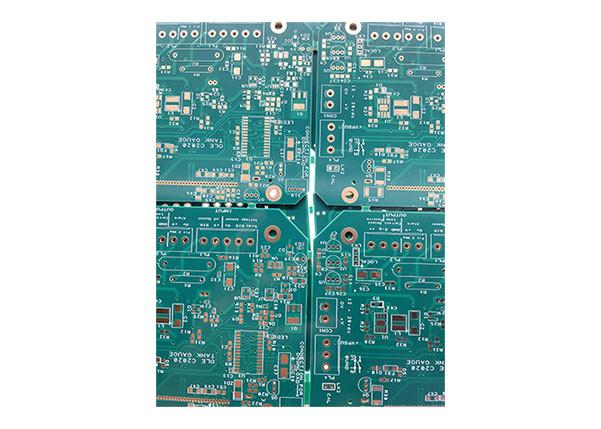

Double Sided PCB Motherboard 1OZ 2OZ 1.6mm

Capacity:

1. Single,Double side & Multi-layer PCB.

2. Buried / Blind Vias, Via in Pad, Counter Sink Hole,Screw Hole(Counter bore),Press fit,Half Hole.

3. HASL lead free, Immersion Gold/ Silver/Tin, OSP,gold plating/finger,Peelable mask,Carbon ink.

4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.

5. Quantities range from prototype to medium&big batch production.

Related Products:

Quality Control:

All department implements according to ISO and the related dept has to provide 8D report if any board scrapped to defective.

All the outgoing boards have to be 100% electronic tested, impedance tested and soldering.

Visual inspected, we make the inspect microsection before shipment.

Train the mindset of employees and our enterprise culture, make they happy with their work and our company, it's helpful for them to produce good quality products.

High quality raw material (Shengyi FR4, ITEQ, Taiyo Solder Mask Ink etc.)

The AOI could inspect the whole set, boards are inspected after each process

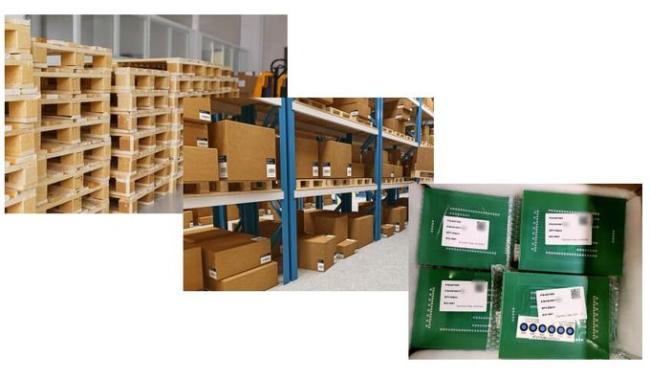

Packaging & Delivery

ABIS CIRCUITS Company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. Also, we prepare some personalized services for all the orders.

-Common packaging:

• PCB: Sealed bag, Anti-static bags, Suitable carton.
• PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
• Customized Packaging: The carton outside will be printed the name of the customer address, mark, the customer needs to specify the destination and other information.

Company profile:

Abis Circuits C o., Ltd is a professional PCB manufacturing which is focus on double side, Multilayer and HDI pcb mass production. The company was established on Oct,2006.we have two factories together ,The factory in Shenzhen is specialized in small to middle volume orders and the factory in shaoguan,GuangDong Province is for big volumn and HDI.

Nowadays we have more than 1100 employees over the two factories to cope with increasing demand. Factory Operation plant space (I) 10000 Square meters (II) 40000 Square Meters Employees (I) 300 Man Powers (II) 800 Man Powers Eng.Technical (I) 20 QA QC Engineers (II) 60 QA,QC Engineers

Workshop:

FAQ:

Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for 12 years.

Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.

Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.

Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.

Q5: What is your certificate?
A: ISO9001:2015, ISO14001: 2015, UL, SGS,RoHS report.

Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.

Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
