3mil ENIG HDI PCB Board OSP HASL Multilayer Immersion Gold CUL
Multilayer Immersion Gold FR4 HDI PCB Board with Blind Buried Holes
Technical & Capability
| Item | Production Capacity |
| Layer Counts | 1-20 layers |
| Material | FR-4,Cu base,High TG FR-4,PTFE,Rogers,TEFLON etc. |
| Board thickness | 0.20mm-8.00mm |
| Maximum Size | 600mmX1200mm |
| Board Outline Tolerance | +0.10mm |
| Thickness Tolerance(t≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Minimum Line | 0.075mm |
| Minimum Space | 0.075mm |
| Out Layer Copper Thickness | 18um--350um |
| Inner Layer Copper Thickness | 17um--175um |
| Drilling Hole(Mechanical) | 0.15mm--6.35mm |
| Finish Hole(Mechanical) | 0.10mm-6.30mm |
| Diameter Tolerance(Mechanical) | 0.05mm |
| Registration(Mechanical) | 0.075mm |
| Aspect Ratio | 16:1 |
| Solder Mask Type | LPI |
| SMT Mini.Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance control Tolerance | ±10% |
| Surface finish/treatment | HASL,ENIG,Chem,Tin,Flash Gold, OSP, Gold Finger |
Company
Abis Circuits Co., Ltd is a professional PCB manufacturer which was established on Oct, 2006 and focus on double side, Multilayer and HDI pcb mass production.
We have two factories together , the factory in Shenzhen is specialized in small and middle volume orders and the factory in Jiangxi is for big volume and HDI.
a. Compeitive price: We'd like to fully support the projects in best price.
b. High quality: E-test, X-ray, AIO test, QC, 100% functional test. (Quality is our culture)
c. On time delivery: Two factories in China with 1100 experienced workers and cover 10,000 s.q. m facility.
d. PCB Lead time: 3-7 working days; PCBA Lead time: 20-25 working days .

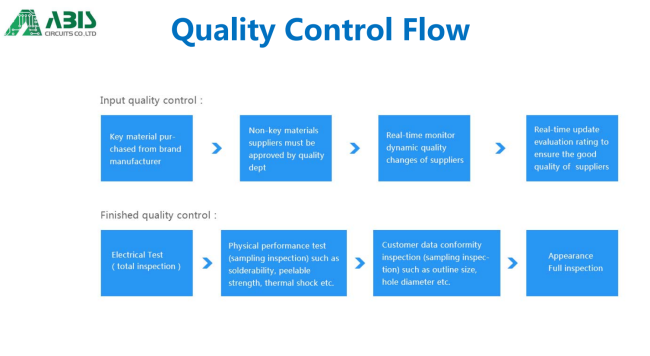

Quality Control
All department implements according to ISO and the related dept has to provide 8D report if any board scrapped to defective.
All the outgoing boards have to be 100% electronic tested, impedance tested and soldering.
Visual inspected, we make the inspect microsection before shipment.
Train the mindset of employees and our enterprise culture, make they happy with their work and our company, it's helpful for them to produce good quality products.
High quality raw material (Shengyi FR4, ITEQ, Taiyo Solder Mask Ink etc.)
The AOI could inspect the whole set, boards are inspected after each process
Workshop
FAQ
Q1:What's your Aluminum board Thermal Conductivity?
A: Normally 0.8-3W/m.K. If you have special demands please feel free contact us.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster.
Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS,RoHS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File,
Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS,
is hidden a cost saving for customers.
Please keep us informed for any intereste!
ABIS cares every your order even 1 pcs!
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
